Article No. 14763
FASERFIX KS 300, class D 400
Ductile iron grating SW 2 x 140/18 mm, KTL-coated, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

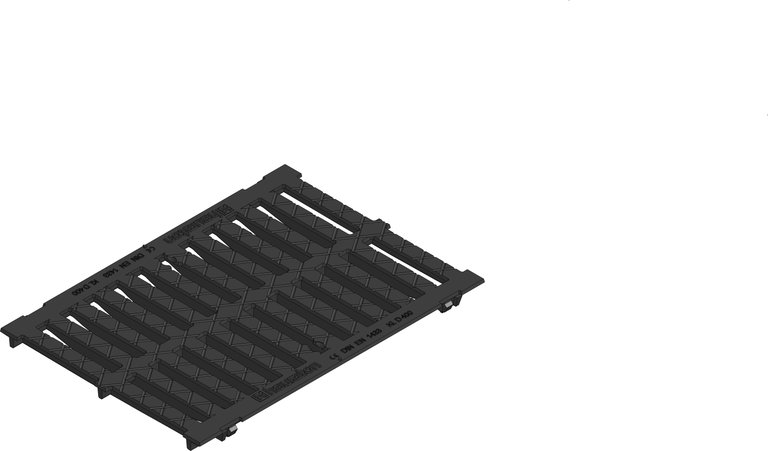

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
14763
Length
500 mm
Width
349 mm
Height
50 mm
Einlegetiefe
20 mm
Weight
12.92 kg
Material
Ductile iron GJS 500-7 with KTL-coating
Intake cross-section
1317.0 cm²/m
Nominal size
300
Inlet opening
140 x 18 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
ductile iron grating SW 18 mm, KTL, cl. D 400, FASERFIX KS 300, 0,5 m
Product description
FAERFIX KS 300 - ductile iron grating made of spheroidal ductile iron GJS 500-7, SW 2 x 140/18, KTL-coated, with horizontal thrust resistance, loading capacity from A 15 - D 400 according to EN 1433, CE compliant, fourfold locking, installation length 500 mm, item no. 14763
Packaging unit
72
Declaration of Performance
