Article No. 14040
FASERFIX KS 300 up to load class E 600
Type 010, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

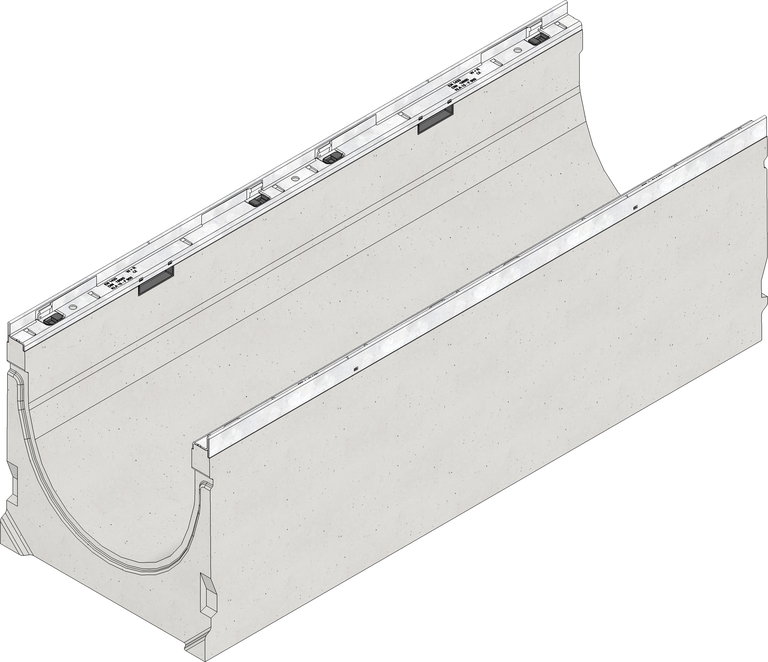

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
14040
Length
1000 mm
Width
360 mm
Height
340 mm
Weight
122.60 kg
Material
fibre-reinforced concrete, strip galvanized steel
Height of angle housing
20 mm
Nominal size
300
Internal channel cross-section
637 cm²
Fall
-
Regulations
Locking handle, SIDE-LOCK
Regulations
M
Channel material
fibre-reinforced concrete
angle housing material
strip galvanized steel
Regulations
EN 1433, DIN 19580
Regulations
FASERFIX KS 300 Channel, type 010
Regulations
FASERFIX KS 300 type 010 - channel made of fibre reinforced concrete, loading capacity from A 15 up to E 600 according to EN 1433, CE compliant, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, eightfold locking, without crossing bars in the channel line, with sealing groove, L/W/H 1000x360x340 mm, item no. 14040
Regulations
9
Declaration of Performance
Tender Texts
Installation example
Concrete class A 15 - E 600
Cemented floor class A 15 - C 250
Asphalt class A 15 - D 400
Concrete class A 15 - D 400
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Pavement / large-size slab class D 400
Pavement class D 400
Concrete class E 600
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Pavement class D 400
Asphalt class E 600
Concrete class C 250 - D 400
Installation instructions
