Article No. 33236
FASERFIX POINT KS 30/30, Point drainage, class D 400
with foul air trap and silt bucket made of composite, with longitudinal ductile iron grating, bar distance 8 mm, galvanised, with PVC-U pipe connection DN/OD 110
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

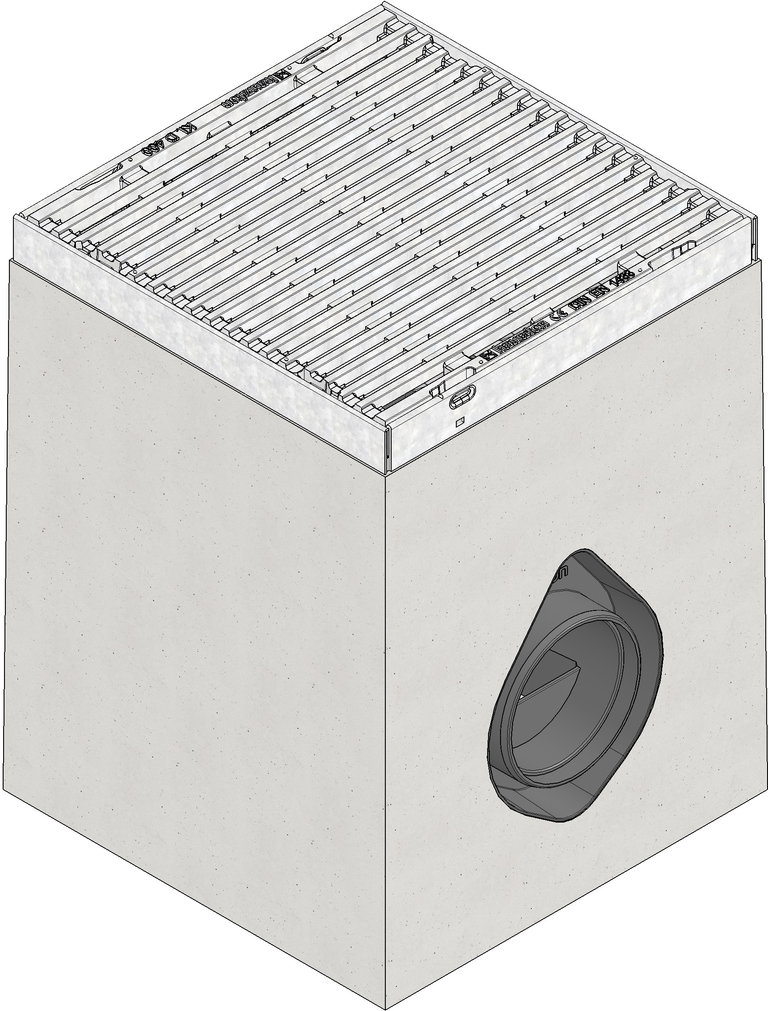

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
33236
Length
300 mm
Width
300 mm
Height
400 mm
Weight
47.40 kg
Material
Ductile iron GJS 500-7 galvanised, fibre-reinforced concrete, recycled, modified Polypropylene, strip galvanized steel
Inlet opening
8 x 0 mm
Material grating
Ductile iron GJS 500-7 galvanised
Sales text
FASERFIX POINT KS 30/30 Gully, with all-round edge frame made of galvanised steel, with foul air trap, silt bucket made of composite, with integrated PVC-U pipe connection DN/OD 110 and longitudinal ductile iron grating bar distance 8 mm, galvanised, cl.
Product description
FASERFIX POINT KS 30/30 - Gully, made of fibre reinforced concrete, with all-round edge frame made of galvanised steel, with integrated PVC-U pipe connection DN/OD 110, with foul air trap, silt bucket made of composite and longitudinal ductile iron grating made of spheroidal ductile iron GJS 500-7, bar distance 8 mm, galvanised, load class from A 15 - D 400, with boltless quick-locking system SIDE-LOCK, LxWxH 300x300x400 mm, item no. 33236
Packaging unit
-
Tender Texts

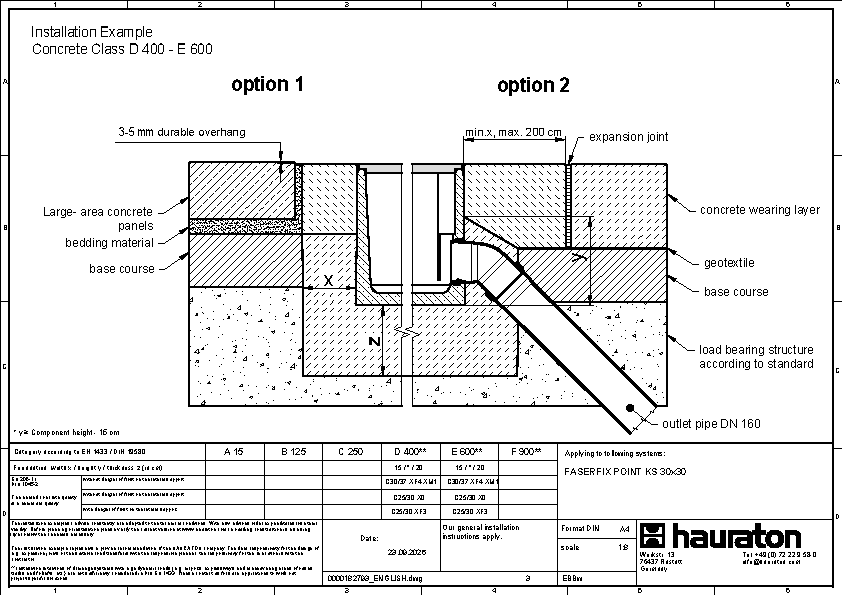

Installation example
Pavement / large-size slab class D 400,
Pavement class A 15 - C 250,
Asphalt class A 15 - E 600,
Concrete class A 15 - E 600,
