Article No. 33485
FASERFIX POINT KS 30/30, Point drainage, class D 400
with foul air trap and silt bucket made of composite, with longitudinal ductile iron grating, bar distance 8 mm, KTL-coated, with PVC-U pipe connection DN/OD 160
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

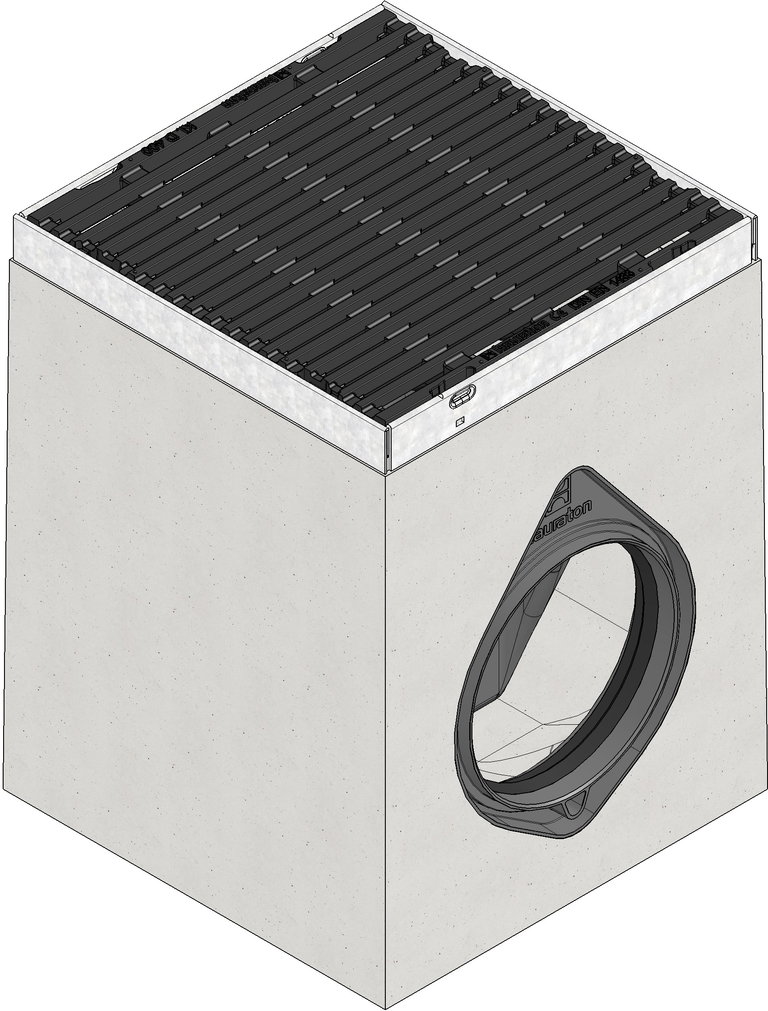

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
33485
Length
300 mm
Width
300 mm
Height
400 mm
Weight
46.60 kg
Material
Ductile iron GJS 500-7 with KTL-coating, fibre-reinforced concrete, recycled, modified Polypropylene, strip galvanized steel
Inlet opening
8 x 0 mm
Material grating
Ductile iron GJS 500-7 with KTL-coating
Sales text
FASERFIX POINT KS 30/30 gully, with all-round galvanised steel edge frame, with silt bucket made of composite, with integrated PVC-U pipe connection DN/OD 160 and longitudinal ductile iron grating bar distance 8 mm, KTL-coated, cl. D 400
Product description
FASERFIX POINT KS 30/30 - gully, made of fibre reinforced concrete, with all-round galvanised steel edge frame, with integrated PVC-U pipe connection DN/OD 160, with silt bucket made of composite and longitudinal ductile iron grating made of spheroidal ductile iron GJS 500-7, bar distance 8 mm, KTL-coated, loading capacity from A 15 - D 400, with boltless quick-locking system SIDE-LOCK, L/W/H 300x300x400 mm, item no. 33485
Packaging unit
-
Tender Texts
Installation example
Pavement / large-size slab class D 400
Pavement class A 15 - C 250
Asphalt class A 15 - E 600
Concrete class A 15 - E 600
