Article No. 33245
FASERFIX POINT KS 30/30, Point drainage, class E 600
with foul air trap and silt bucket made of composite, with GUGI-ductile iron mesh grating MW 15/25 mm, galvanised, with PVC-U pipe connection DN/OD 110
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

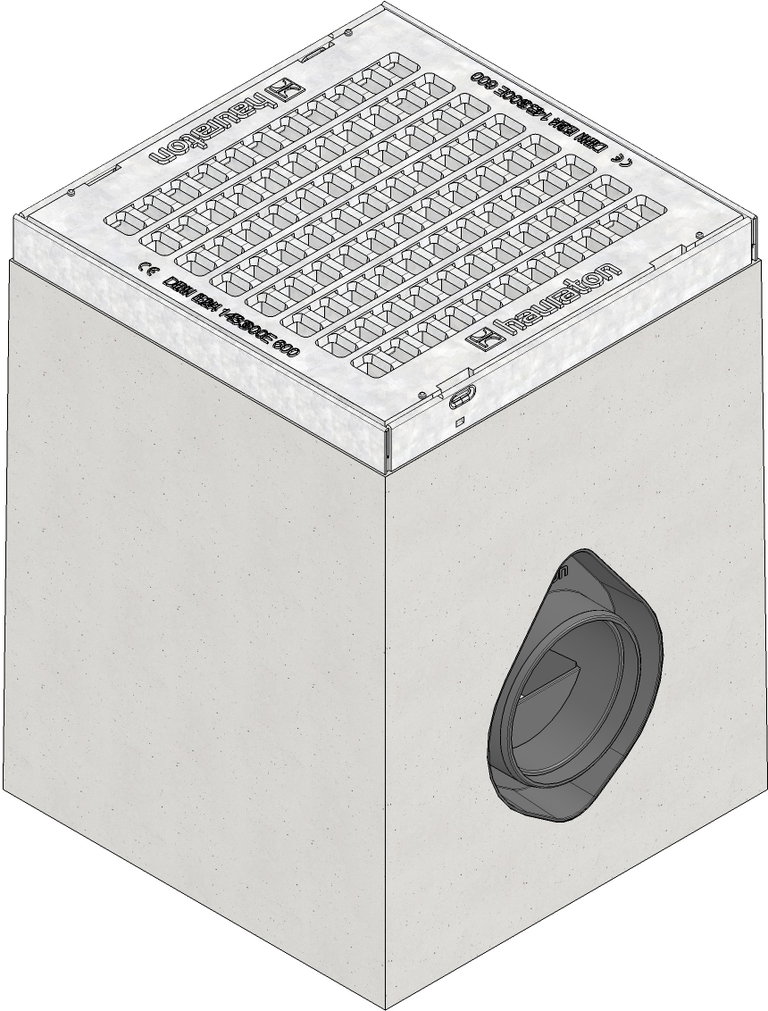

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
33245
Length
300 mm
Width
300 mm
Height
400 mm
Weight
50.20 kg
Material
Ductile iron GJS 500-7 galvanised, fibre-reinforced concrete, recycled, modified Polypropylene, strip galvanized steel
Inlet opening
15 x 25 mm
Material grating
Ductile iron GJS 500-7 galvanised
Sales text
FASERFIX POINT KS 30/30 Gully, with all-round edge frame made of galvanised steel, with foul air trap, silt bucket made of composite, with integrated PVC-U pipe connection DN/OD 110 and GUGI-ductile iron mesh grating MS 15/25 mm, galvanised, cl. E 600
Product description
FASERFIX POINT KS 30/30 - gully, made of fibre reinforced concrete, with all-round galvanised steel edge frame, with integrated PVC-U pipe connection DN/OD 110, with foul air trap, silt bucket made of composite and GUGI-ductile iron mesh grating MW 15/25 mm made of spheroidal ductile iron GJS 500-7, galvanised, loading capacity from A 15 - E 600, with boltless quick-locking system SIDE-LOCK, L/W/H 300x300x400 mm, item no. 33245
Packaging unit
12
Tender Texts
Installation example
Pavement / large-size slab class D 400,
Pavement class A 15 - C 250,
Asphalt class A 15 - E 600,
Concrete class A 15 - E 600,
