Article No. 33248

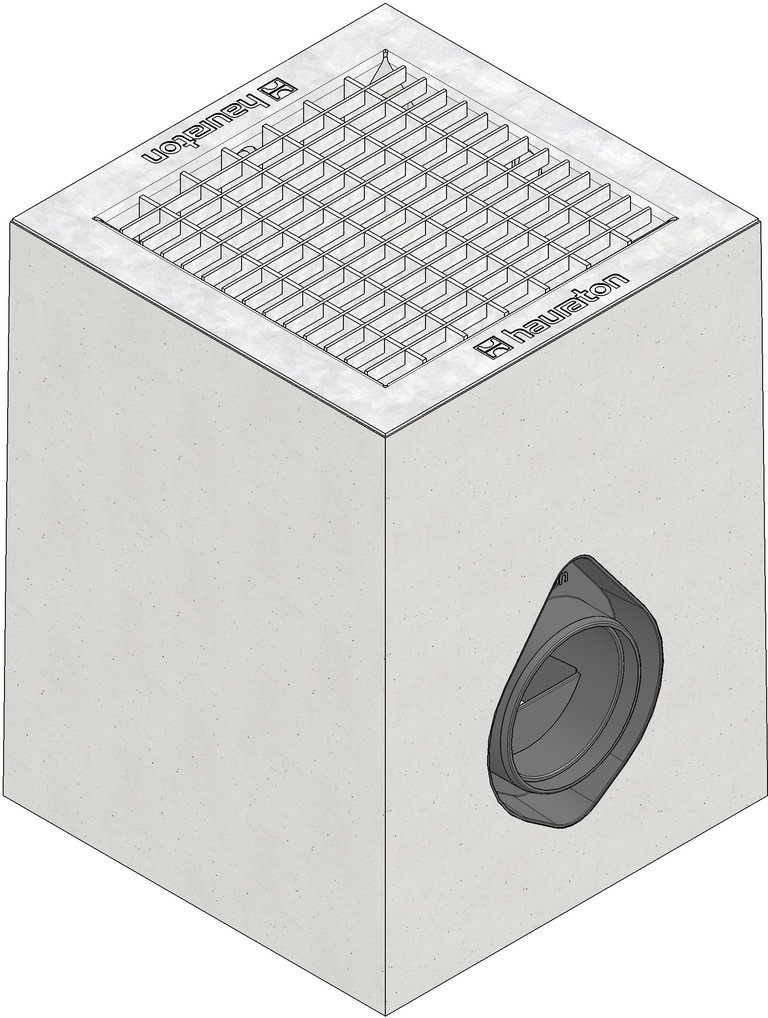

FASERFIX POINT STANDARD 30/30, Point drainage, trafficable
with foul air trap and silt bucket made of composite, with mesh grating MW 30/15 mm, galvanised, with PVC-U pipe connection DN/OD 110
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
33248
Length
300 mm
Width
300 mm
Height
400 mm
Weight
44.80 kg
Material
fibre-reinforced concrete, hot-dip galvanised steel, recycled, modified Polypropylene
Inlet opening
30 x 15 mm
Material grating
hot-dip galvanised steel
Sales text
FASERFIX POINT STANDARD 30/30 Gully with integrated PVC-U pipe connection DN/OD 110, with foul air trap, silt bucket made of composite and mesh grating MS 30/15 mm, trafficable, galvanised
Product description
FASERFIX POINT STANDARD 30/30 Gully made of fibre-reinforced concrete, with PVC-U socket with sealing DN/OD 110, with foul air trap, silt bucket made of composite and mesh grating MS 30/15 mm, galvanised, trafficable, LxWxH 300x300x400 mm, item no. 33248
Packaging unit
12
Tender Texts
Installation instructions
