Article No. 400

FASERFIX STANDARD 150

Type 01, 1,0 m

Available from stock

Questions?

Our experienced planning team will be happy to help you.

Get in touch

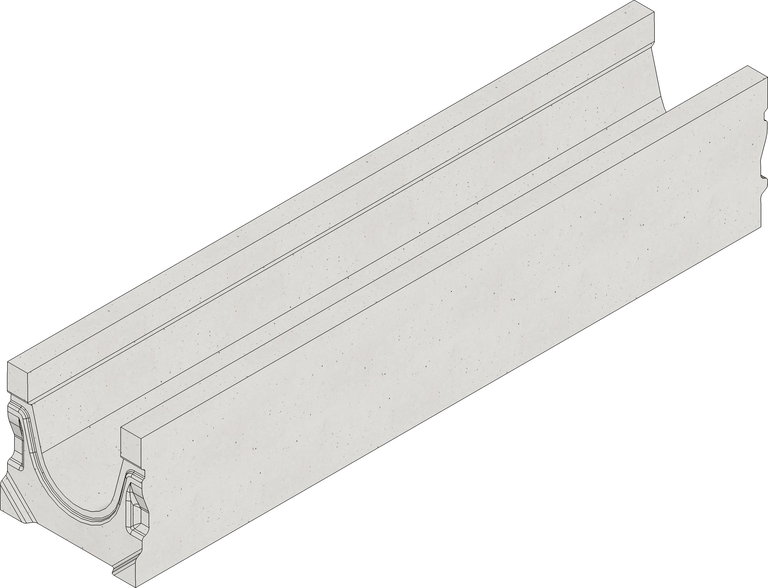

Product image

Technical drawing

Drawing (CAD)

Data Sheet

Technical information and metrics

Article No.
400
Length
1000 mm
Width
212 mm
Height
200 mm
Weight
54.30 kg
Material
fibre-reinforced concrete
Height of angle housing
-
Nominal size
150
Internal channel cross-section
184 cm²
Fall
-
Fixing type
Loose blatant
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Regulations
EN 1433
Sales text
FASERFIX STANDARD 150 Channel body type 01, 1 m
Product description
FASERFIX STANDARD 150 type 01 - Channel body made of fibre-reinforced concrete, load class A 15 - C 250 according to EN 1433, in conjunction with slotted covers up to load class E 600, LxWxH 1000x212x200 mm, item no. 400
Packaging unit
20

Tender Texts

Installation example

Pavement class C 250,

Asphalt class D 400,

Asphalt class D 400,

Pavement class D 400,

Concrete class E 600,

Installation instructions
