Article No. 401
FASERFIX STANDARD 150
Type 01, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

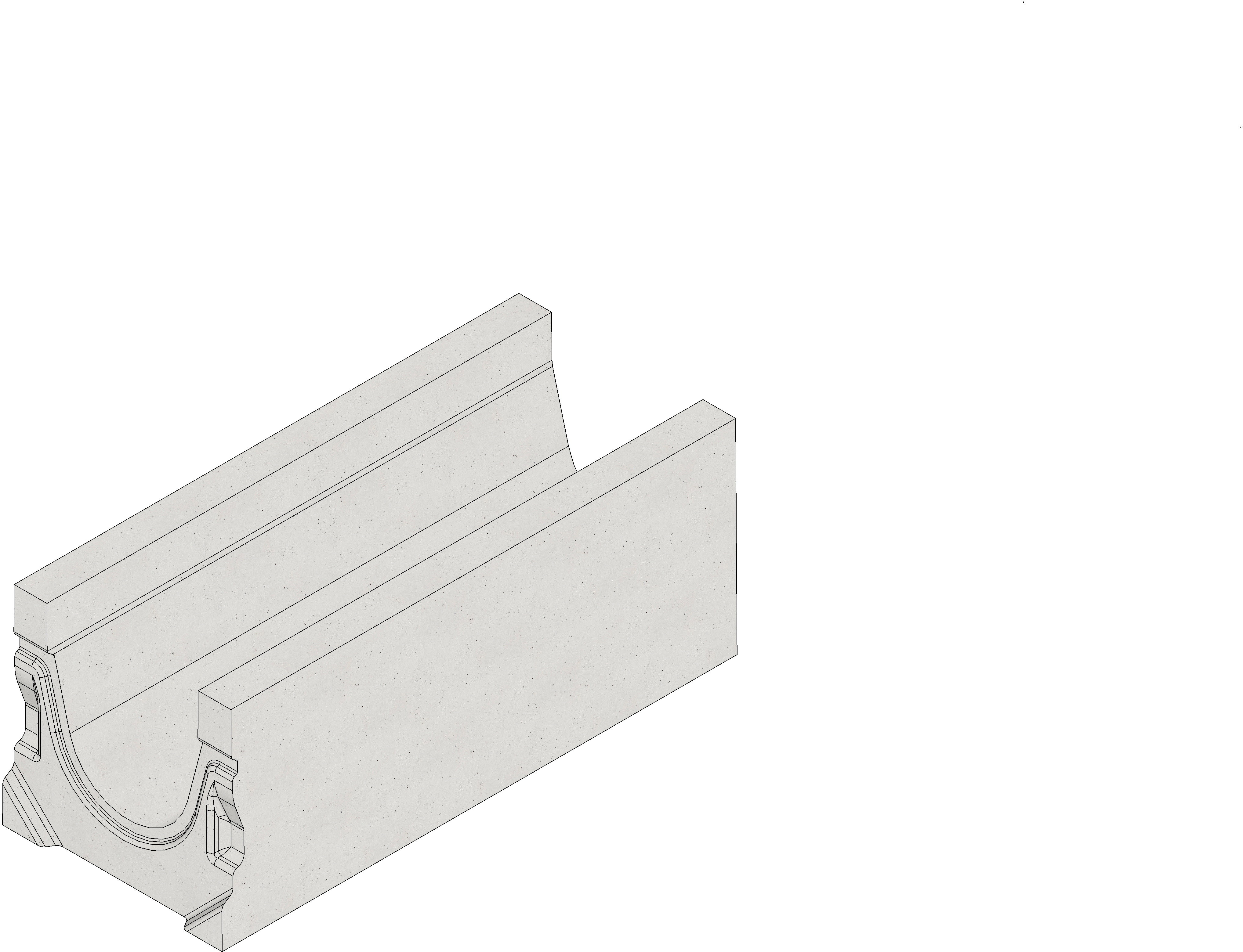

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
401
Length
500 mm
Width
212 mm
Height
200 mm
Weight
26.50 kg
Material
fibre-reinforced concrete
Height of angle housing
-
Nominal size
150
Internal channel cross-section
184 cm²
Fall
-
Fixing type
Loose blatant
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Regulations
EN 1433
Sales text
FASERFIX-Standard 150 channel, type 01, L: 500 mm
Product description
FASERFIX STANDARD 150 Type 01 - Channel made of fibre reinforced concrete, loading capacity from A 15 up to C 250, in conjunction with Slotted Covers up to class E 600 L/W/H 500x210x200 mm, Item No. 401
Packaging unit
40
Tender Texts
Installation example
Pavement class C 250
Asphalt class D 400
Asphalt class D 400
Pavement class D 400
Concrete class E 600
Installation instructions
