Article No. 6280
FASERFIX STANDARD E 100, class B 125
Mesh grating MW 30/10 mm, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

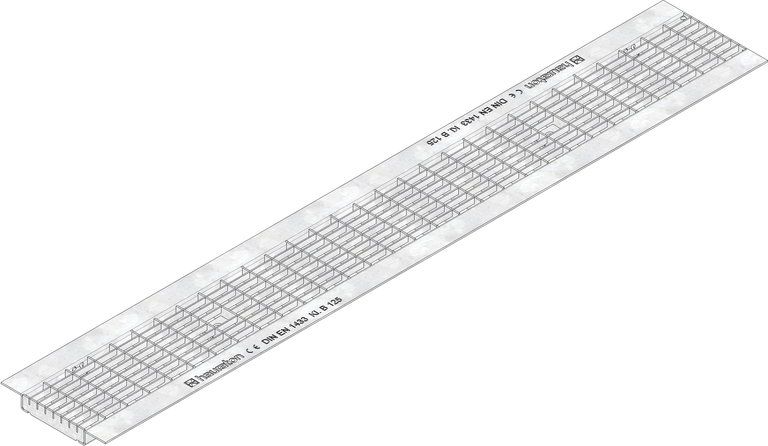

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
6280
Length
1000 mm
Width
158 mm
Height
21 mm
Einlegetiefe
20 mm
Weight
3.44 kg
Material
hot-dip galvanised steel
Intake cross-section
650.0 cm²/m
Nominal size
100
Inlet opening
30 x 10 mm
Fixing type
Loose blatant, Slotted grating, Anti-vandal locking catch, Locking handle
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX-Standard 100 E mesh grating 30/10, galvanised, cl. B 125, 1 m
Product description
FASERFIX STANDARD 100 E - mesh grating 30x10, galvanised, loading capacity from A 15 up to B 125, according to DIN19580 / EN 1433, CE-conform, length 1000mm, Item No. 6280
Packaging unit
255
