Article No. 6242
FASERFIX STANDARD E 100
Type 010, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

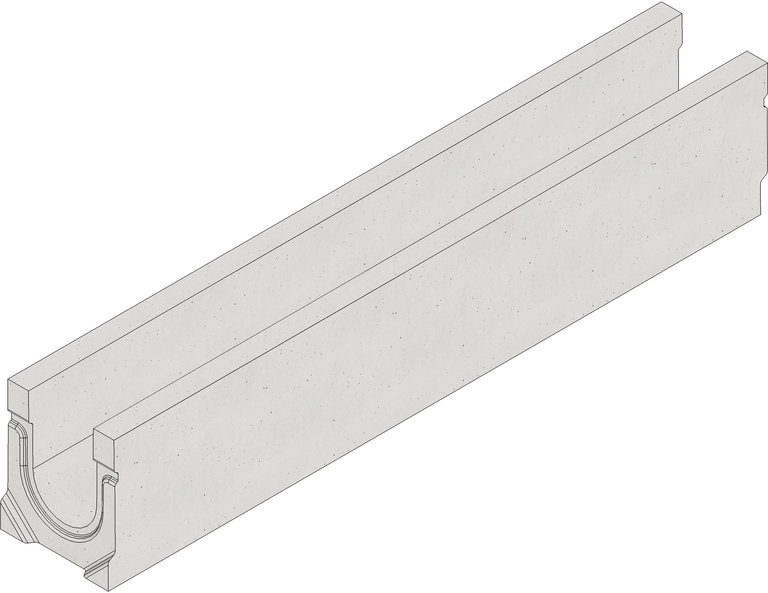

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
6242
Length
1000 mm
Width
162 mm
Height
194 mm
Weight
39.70 kg
Material
fibre-reinforced concrete
Height of angle housing
-
Nominal size
100
Internal channel cross-section
143 cm²
Fall
-
Regulations
Loose blatant, Slotted grating, Anti-vandal locking catch, Locking handle
Regulations
M
Channel material
fibre-reinforced concrete
Regulations
EN 1433, DIN 19580
Regulations
FASERFIX STANDARD E 100 Channel body type 010
Regulations
FASERFIX STANDARD E 100 Type 010 - Channel made of fibre reinforced concrete, loading capacity from A 15 up to C 250, in conjunction with Slotted Covers up to class E 600, according to EN 1433, CE-conform, with built-in fall, without crossing bars in the channel line, with safety joint, L/W/H 1000x162x194 mm, Item No. 6242
Regulations
28
Tender Texts
Installation example
Pavement class A 15
Pavement class B 125
Pavement class C 250
Pavement class C 250
Asphalt class D 400
Asphalt class D 400
Pavement class D 400
Asphalt class D 400
Concrete class E 600
Pavement class D 400
Installation instructions
