Article No. 6342

FASERFIX STANDARD E 100

Type 010L with hole, 1,0 m

Available from stock

Questions?

Our experienced planning team will be happy to help you.

Get in touch

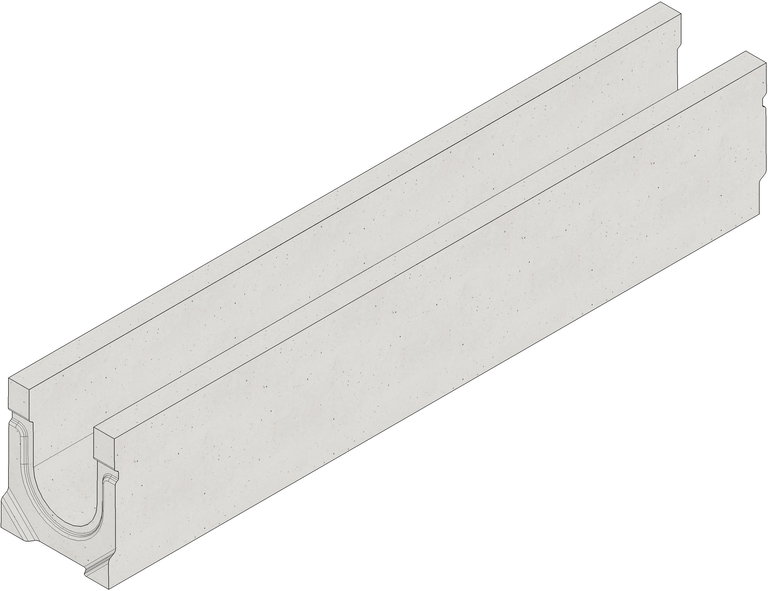

Product image

Technical drawing

Drawing (CAD)

Data Sheet

Technical information and metrics

Article No.
6342
Length
1000 mm
Width
162 mm
Height
194 mm
Weight
39.45 kg
Material
fibre-reinforced concrete
Height of angle housing
-
Nominal size
100
Internal channel cross-section
143 cm²
Fall
-
Fixing type
Loose blatant, Slotted grating, Anti-vandal locking catch
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX STANDARD E 100 Channel body type 010L with outlet DN/OD 110, 1 m
Product description
FASERFIX STANDARD 100 E type 010L - Channel body made of fibre-reinforced concrete, load class A 15 - C 250 according to EN 1433, in conjunction with slotted covers up to load class E 600, CE compliant, with outlet DN/OD 110 at the channel end vertically in channel base, with sealing groove, LxWxH 1000x162x194 mm, item no. 6342
Packaging unit
28

Tender Texts

Installation example

Pavement class A 15,

Pavement class B 125,

Pavement class C 250,

Asphalt class D 400,

Asphalt class D 400,

Pavement class D 400,

Asphalt class D 400,

Concrete class E 600,

Pavement class D 400,

Installation instructions
