Article No. 6200
FASERFIX STANDARD E 100 up to class C 250
Type 01, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

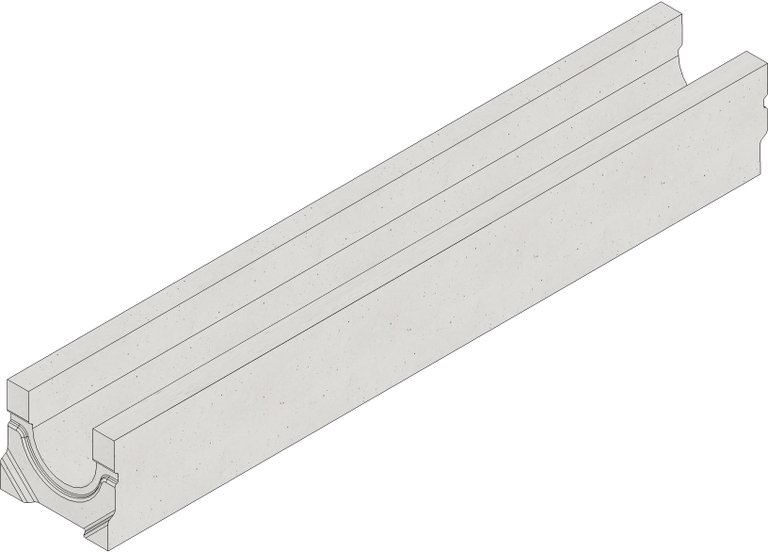

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
6200
Length
1000 mm
Width
162 mm
Height
140 mm
Weight
32.50 kg
Material
fibre-reinforced concrete
Height of angle housing
-
Nominal size
100
Internal channel cross-section
89 cm²
Fall
-
Fixing type
Loose blatant, Slotted grating, Anti-vandal locking catch, Locking handle
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX STANDARD E 100 Channel body type 01
Product description
FASERFIX STANDARD E 100 type 01 - Channel body made of fibre-reinforced concrete, load class A 15 - C 250 according to EN 1433, in conjunction with slotted covers up to load class E 600, CE compliant, with sealing groove, LxWxH 1000x162x140 mm, item no. 6200
Packaging unit
35
Declaration of Performance
Tender Texts
Installation instructions
Installation example
Asphalt class A 15 - C 250,
Concrete class A 15 - C 250,
Pavement class A 15 - C 250,
