Article No. 6209
FASERFIX STANDARD E 100 with built-in fall 0.6 %
Type 9, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

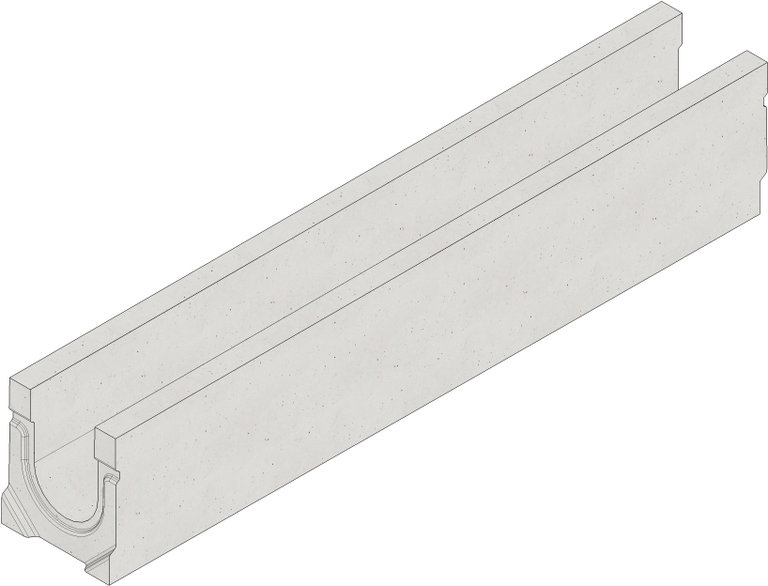

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
6209
Length
1000 mm
Width
162 mm
Height
188 - 194 mm
Weight
38.40 kg
Material
fibre-reinforced concrete
Height of angle housing
-
Nominal size
100
Internal channel cross-section
137 cm²
Fall
0.6 %
Fixing type
Loose blatant, Slotted grating, Anti-vandal locking catch, Locking handle
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX STANDARD E 100 Channel body type 9
Product description
FASERFIX STANDARD E 100 type 1 - 10 - Channel body made of fibre-reinforced concrete, load class A 15 - C 250 according to EN 1433, in conjunction with slotted covers up to load class E 600, CE compliant, with built-in fall, with sealing groove, LxWxH 1000x162x140-194 mm, item no. 6201 - 6210
Packaging unit
21
Tender Texts
Installation example
Pavement class A 15,
Pavement class B 125,
Pavement class C 250,
Asphalt class D 400,
Asphalt class D 400,
Pavement class D 400,
Asphalt class D 400,
Concrete class E 600,
Pavement class D 400,
Installation instructions
