Article No. 6202
FASERFIX STANDARD E 100 with built-in fall 0.6 %, up to class C 250
Type 2, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

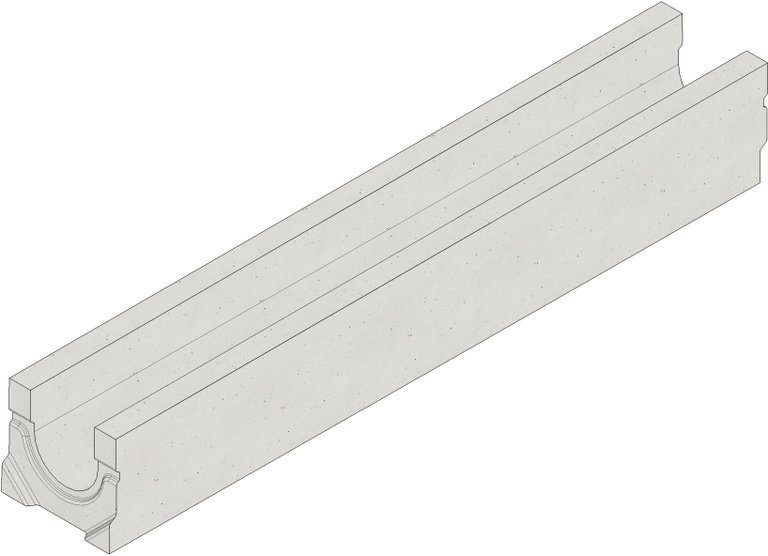

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
6202
Length
1000 mm
Width
162 mm
Height
146 - 152 mm
Weight
32.90 kg
Material
fibre-reinforced concrete
Height of angle housing
-
Nominal size
100
Internal channel cross-section
95 cm²
Fall
0.6 %
Fixing type
Loose blatant, Slotted grating, Anti-vandal locking catch, Locking handle
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX STANDARD E 100 channel Type 2
Product description
FASERFIX STANDARD E 100 Type 1-10 - Channel made of fibre reinforced concrete, loading capacity from A 15 up to C 250, in conjunction with Slotted Covers up to class E 600, according to EN 1433, CE-conform, with built-in fall, without crossing bars in the channel line, with safety joint, L/W/H 1000x162x140-194 mm, Item No. 6201-6210
Packaging unit
28
Declaration of Performance
Tender Texts
Installation instructions
Installation example
Asphalt class A 15 - C 250
Concrete class A 15 - C 250
Pavement class A 15 - C 250
