Article No. 26442
FASERFIX SUPER 100 with ductile iron angle housings, up to load class F 900
Type 010, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

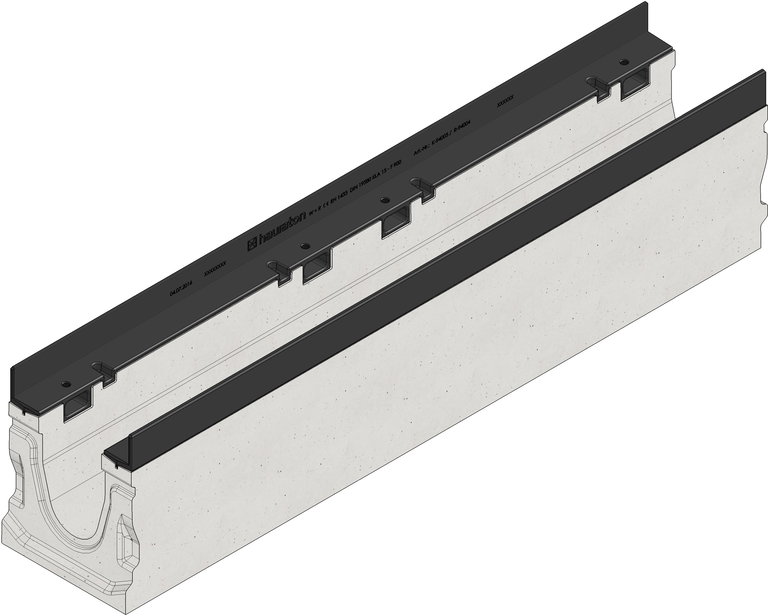

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
26442
Length
1000 mm
Width
190 mm
Height
235 mm
Weight
62.00 kg
Material
Ductile iron GJS 500-7 with KTL-coating, fibre-reinforced concrete
Height of angle housing
40 mm
Nominal size
100
Internal channel cross-section
125 cm²
Fall
-
Fixing type
Bolting
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
angle housing material
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX SUPER 100 Channel body type 010 with edge frames made of KTL-coated ductile iron, 1 m
Product description
FASERFIX SUPER 100 type 010 -channel body made of fibre reinforced concrete, loading capacity from A 15 up to F 900 according to EN 1433, CE compliant, with KTL-coated ductile iron angle housing, without crossing bars in the channel line, with sealing groove, grating insertion depth 40 mm, eightfold locking per runing meter, L/W/H 1000x190x235 mm, item no. 26442
Packaging unit
18
Declaration of Performance
Tender Texts
Installation example
Pavement class D 400, Type I
Pavement class A 15 - C 250,
Asphalt class D 400,
Asphalt class D 400, in ramps
Asphalt class D 400, with curb
Concrete class D 400, with curb
Asphalt class D 400 - E 600,
Concrete class D 400 - E 600,
Pavement / large-size slab class D 400,
Asphalt class D 400, Type I
Concrete class D 400, Type I
Asphalt class D 400 - E 600,
Asphalt class D 400 - E 600, with ledge stone
Pavement class D 400 - E 600, in ramps
Concrete class D 400 - F 900, in ramps
Concrete class E 600,
Pavement / large-size slab class E 600 - F 900,
Pavement class E 600 - F 900, Channel height ≥ 235 mm
Asphalt class F 900,
Concrete class F 900,
Pavement class A 15 - C 250, as double strand
Concrete class D 400, as double strand
Pavement class D 400, as double strand
Asphalt class E 600, as double strand
Asphalt class F 900, as double strand
Concrete class A 15 - C 250, Flat channel
Installation instructions
