Article No. 26048
FASERFIX SUPER 100 with galvanised angle housings, up to load class F 900
Type 020, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

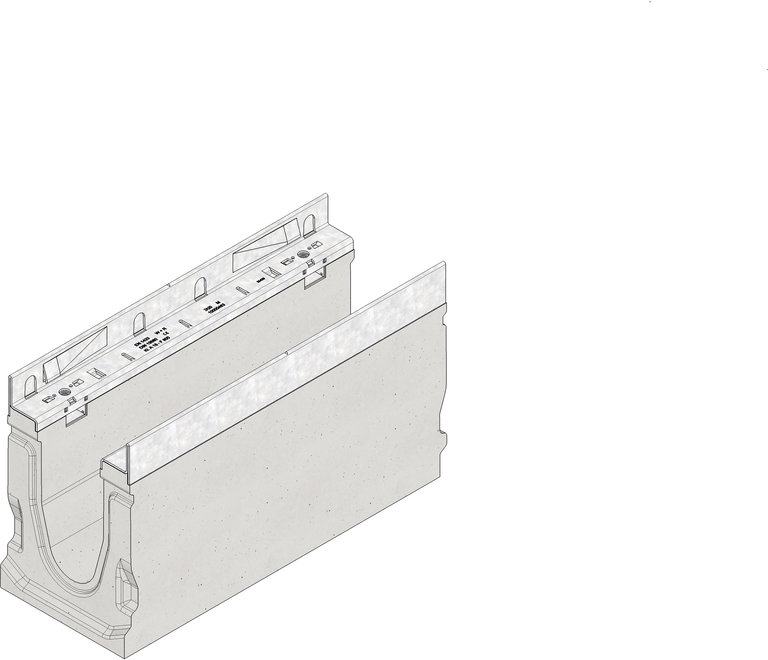

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
26048
Length
500 mm
Width
190 mm
Height
285 mm
Weight
38.00 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating
Height of angle housing
40 mm
Nominal size
100
Internal channel cross-section
175 cm²
Fall
-
Fixing type
SIDE-LOCK, Bolting
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
Steel with zinc-magnesium coating
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX SUPER 100 Channl type 020, 0,5 m
Product description
FASERFIX SUPER 100 type 020 - channel body made of fibre reinforced concrete, loading capacity from A 15 to F 900 according to EN 1433, CE compliant, with with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, eightfold locking, without crossing bars in the channel line, with sealing groove, grating insertion depth 40 mm, L/W/H 500x190x285 mm, item no. 26048
Packaging unit
36
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Concrete class C 250 - D 400
Pavement / large-size slab class D 400
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Asphalt class A 15 - D 400
Asphalt class A 15 - D 400
Concrete class A 15 - D 400
Asphalt class A 15 - E 600
Concrete class A 15 - F 900
Pavement / large-size slab class D 400
Asphalt class D 400 - E 600
Asphalt class D 400 - E 600
Pavement / large-size slab class D 400 - E 600
Concrete class D 400 - F 900
Concrete class E 600
Pavement / large-size slab class E 600 - F 900
Asphalt class F 900
Concrete class F 900
Pavement class A 15 - C 250
Concrete class C 250 - D 400
Pavement class D 400
Asphalt class E 600
Asphalt class F 900
Installation instructions
