Article No. 22483
FASERFIX SUPER 150, class D 400
Ductile iron grating, SW 150/18 mm, KTL-coated, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

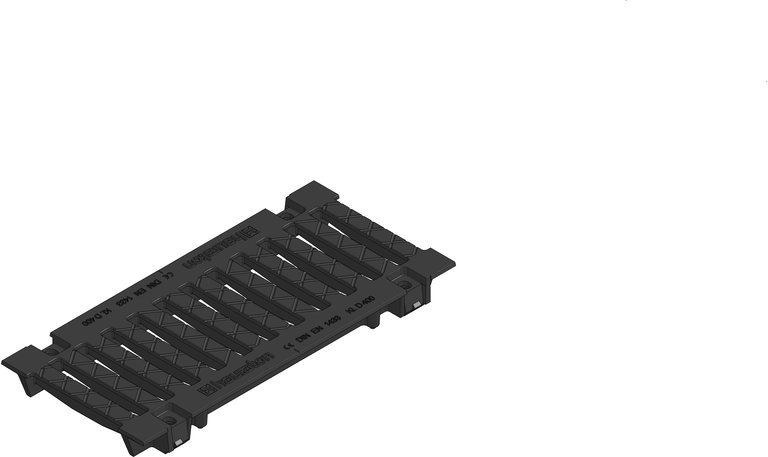

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
22483
Length
500 mm
Width
229 mm
Height
47 mm
Einlegetiefe
40 mm
Weight
7.45 kg
Material
Ductile iron GJS 500-7 with KTL-coating
Intake cross-section
624.0 cm²/m
Nominal size
150
Inlet opening
150 x 18 mm
Regulations
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Regulations
Ductile iron grating SW 150/18 mm, KTL-coated, cl. D 400, FASERFIX SUPER 150, 0.5 m
Regulations
FASERFIX SUPER 150 - Ductile iron grating made of spheroidal ductile iron GJS 500-7, slot width 150/18 mm, KTL-coated, load class A 15 - D 400 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 22483
Regulations
98
Declaration of Performance
