Article No. 22061
FASERFIX SUPER 150, class F 900
Ductile iron grating SW 150/20 mm, black, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

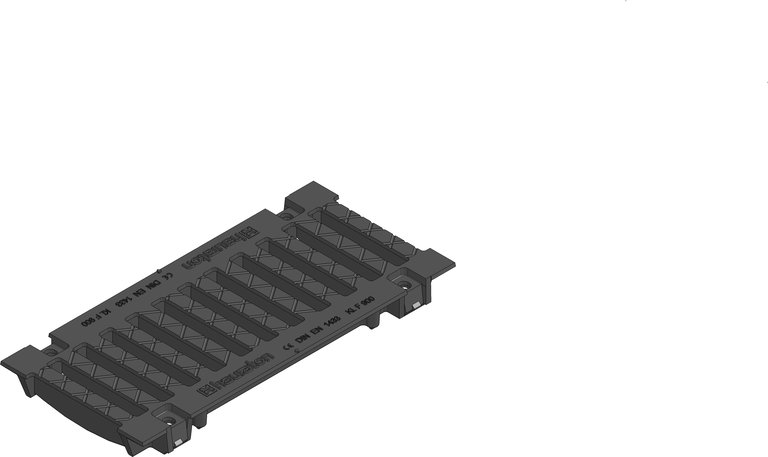

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
22061
Length
500 mm
Width
229 mm
Height
48 mm
Einlegetiefe
40 mm
Weight
8.74 kg
Material
Ductile iron GJS 500-7
Intake cross-section
710.0 cm²/m
Nominal size
150
Inlet opening
150 x 20 mm
Fixing type
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating SW 150/20 mm, black, cl. F 900, FASERFIX SUPER 150, 0.5 m
Product description
FASERFIX SUPER 150 - Ductile iron grating SW 150/20 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection, load class A 15 - F 900 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 22061
Packaging unit
98
Declaration of Performance
