Article No. 22442
FASERFIX SUPER 150 with ductile iron angle housings, up to load class F 900
Type 010, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

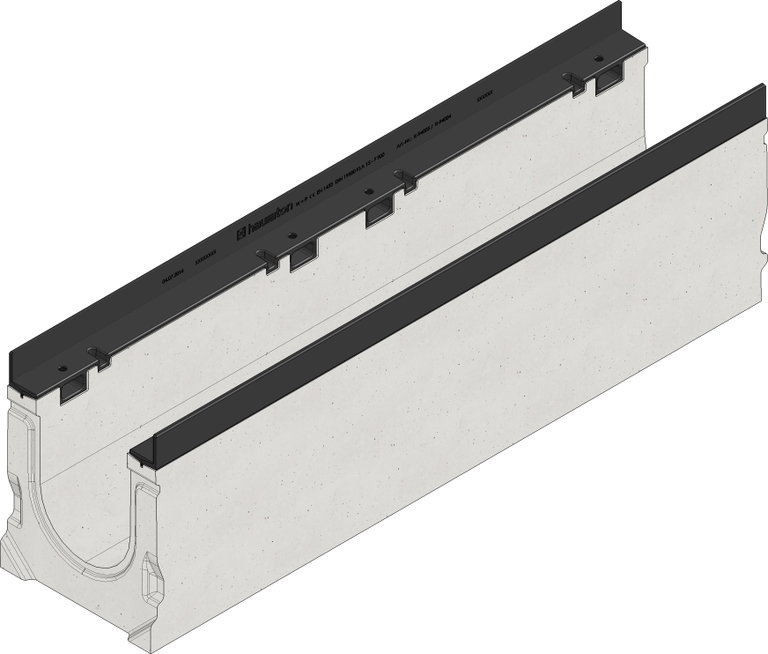

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
22442
Length
1000 mm
Width
240 mm
Height
300 mm
Weight
88.21 kg
Material
Ductile iron GJS 500-7 with KTL-coating, fibre-reinforced concrete
Height of angle housing
40 mm
Nominal size
150
Internal channel cross-section
272 cm²
Fall
-
Fixing type
Bolting
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX SUPER 150 channel type 010 with KTL coated ductile iron angle housing, 1 m
Product description
FASERFIX SUPER 150 type 010 - channel body made of fibre reinforced concrete, loading capacity from A 15 up to F 900 according to EN 1433, CE compliant, with KTL-coated ductile iron angle housing, without crossing bars in the channel line, with sealing groove, grating insertion depth 40 mm, eightfold locking per meter, L/W/H 1000x240x300 mm, item no. 22442
Packaging unit
15
Declaration of Performance
Tender Texts
Installation example
Concrete class A 15 - C 250
Pavement class A 15 - C 250
Pavement class A 15 - C 250
Pavement class A 15 - C 250
Concrete / Cemented floor class A 15 - C 250
Asphalt class A 15 - D 400
Concrete class C 250 - D 400
Pavement / large-size slab class D 400
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Asphalt class A 15 - D 400
Asphalt class A 15 - D 400
Concrete class A 15 - D 400
Asphalt class A 15 - E 600
Concrete class A 15 - F 900
Pavement / large-size slab class D 400
Asphalt class D 400 - E 600
Asphalt class D 400 - E 600
Pavement / large-size slab class D 400 - E 600
Concrete class D 400 - F 900
Concrete class E 600
Pavement / large-size slab class E 600 - F 900
Asphalt class F 900
Concrete class F 900
Pavement class A 15 - C 250
Concrete class C 250 - D 400
Pavement class D 400
Asphalt class E 600
Asphalt class F 900
Installation instructions
