Article No. 22405
FASERFIX SUPER 150 with ductile iron angle housings, up to load class F 900
Type 01E, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

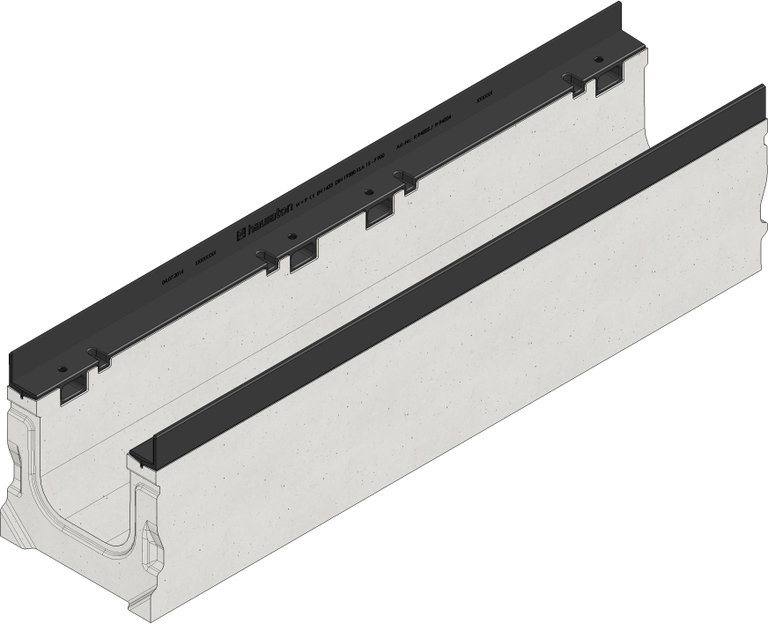

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
22405
Length
1000 mm
Width
240 mm
Height
255 mm
Weight
83.80 kg
Material
Ductile iron GJS 500-7 with KTL-coating, fibre-reinforced concrete
Height of angle housing
40 mm
Nominal size
150
Internal channel cross-section
223 cm²
Fall
-
Fixing type
Bolting
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX SUPER 150 channel type 01 angular with KTL coated ductile iron angle housing, 1 m
Product description
FASERFIX SUPER 150 type 01 angular - channel body made of fibre reinforced concrete, loading capacity from A 15 up to F 900 according to EN 1433, CE compliant, with KTL-coated ductile iron angle housing, without crossing bars in the channel line, with sealing groove, grating insertion depth 40 mm, eightfold locking per runing meter, L/W/H 1000x240x255 mm, item no. 22405
Packaging unit
-
Declaration of Performance
Tender Texts
Installation example
Concrete class A 15 - C 250
Pavement class A 15 - C 250
Pavement class A 15 - C 250
Pavement class A 15 - C 250
Concrete / Cemented floor class A 15 - C 250
Asphalt class A 15 - D 400
Concrete class C 250 - D 400
Pavement / large-size slab class D 400
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Asphalt class A 15 - D 400
Asphalt class A 15 - D 400
Concrete class A 15 - D 400
Asphalt class A 15 - E 600
Concrete class A 15 - F 900
Pavement / large-size slab class D 400
Asphalt class D 400 - E 600
Asphalt class D 400 - E 600
Pavement / large-size slab class D 400 - E 600
Concrete class D 400 - F 900
Concrete class E 600
Pavement / large-size slab class E 600 - F 900
Asphalt class F 900
Concrete class F 900
Pavement class A 15 - C 250
Concrete class C 250 - D 400
Pavement class D 400
Asphalt class E 600
Asphalt class F 900
Installation instructions
