Article No. 22036
FASERFIX SUPER 150 with galvanised angle housings, up to load class F 900
Type 010L with opening DN/OD 160, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

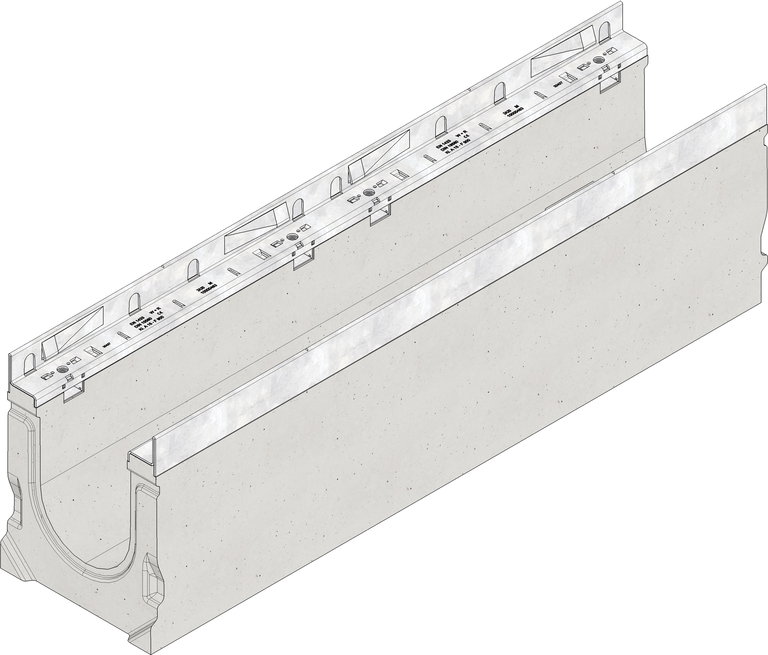

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
22036
Length
1000 mm
Width
240 mm
Height
300 mm
Weight
82.40 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating
Height of angle housing
40 mm
Nominal size
150
Internal channel cross-section
272 cm²
Fall
-
Regulations
SIDE-LOCK, Bolting
Regulations
M
Channel material
fibre-reinforced concrete
angle housing material
Steel with zinc-magnesium coating
Regulations
EN 1433, DIN 19580
Regulations
FASERFIX SUPER 150 Channel body type 010L with outlet DN/OD 160, with edge frames made of galvanised steel, 1 m
Regulations
FASERFIX SUPER 150 type 010 with hole - channel body made of fibre reinforced concrete, loading capacity from A 15 up to F 900 according to EN 1433, CE compliant, with hole DN/OD 160, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, eightfold locking, without crossing bars in the channel line, with sealing groove, insert depth grating 40 mm, L/W/H 1000x240x300 mm, item no. 22036
Regulations
15
Declaration of Performance
Tender Texts
Installation example
Concrete class A 15 - C 250
Pavement class A 15 - C 250
Pavement class A 15 - C 250
Concrete / Cemented floor class A 15 - C 250
Pavement class D 400
Pavement class A 15 - C 250
Asphalt class D 400
Asphalt class D 400
Asphalt class D 400
Concrete class D 400
Asphalt class D 400 - E 600
Concrete class D 400 - E 600
Pavement / large-size slab class D 400
Asphalt class D 400
Concrete class D 400
Asphalt class D 400 - E 600
Asphalt class D 400 - E 600
Pavement class D 400 - E 600
Concrete class D 400 - F 900
Concrete class E 600
Pavement / large-size slab class E 600 - F 900
Pavement class E 600 - F 900
Asphalt class F 900
Concrete class F 900
Pavement class A 15 - C 250
Concrete class D 400
Pavement class D 400
Asphalt class E 600
Asphalt class F 900
Installation instructions
