Article No. 22037
FASERFIX SUPER 150 with galvanised angle housings, up to load class F 900
Type 020L with opening DN/OD 160, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

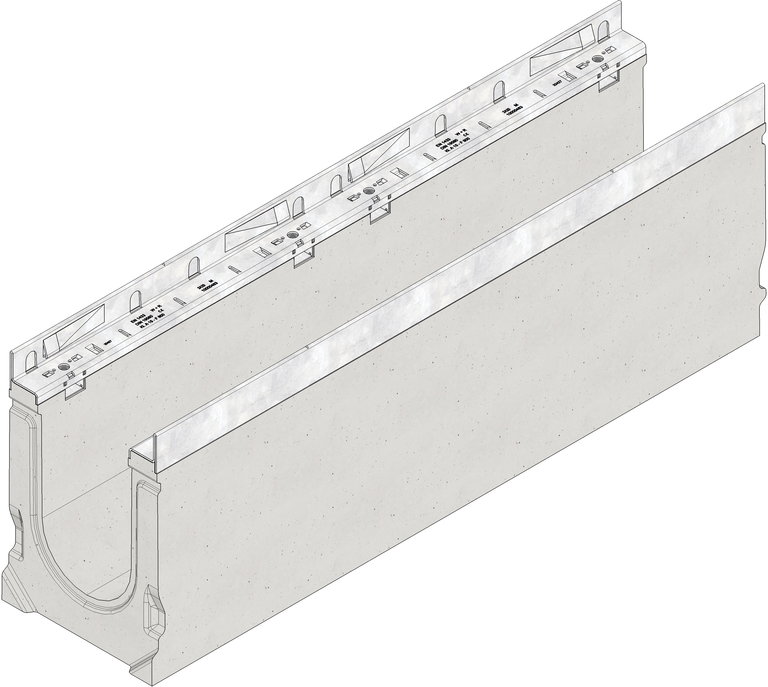

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
22037
Length
1000 mm
Width
240 mm
Height
350 mm
Weight
93.60 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating
Height of angle housing
40 mm
Nominal size
150
Internal channel cross-section
345 cm²
Fall
-
Fixing type
SIDE-LOCK, Bolting
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
angle housing material
Steel with zinc-magnesium coating
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX SUPER 150 Channel body type 020L with outlet DN/OD 160, with edge frames made of galvanised steel, 1 m
Product description
FASERFIX SUPER 150 type 020L - Channel body made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, with outlet DN/OD 160, CE compliant, with edge frame made of galvanised steel, with boltless quick-locking system SIDE-LOCK for quick and easy installation of the grating, 8-fold bolting additionally possible, 8-fold locking, with sealing groove, grating inlay depth 40 mm, LxWxH 1000x240x350 mm, item no. 22037
Packaging unit
10
Declaration of Performance
Tender Texts
Installation example
Concrete class A 15 - C 250, Flat channel
Pavement class A 15 - C 250, Flat channel
Pavement class A 15 - C 250, in ramps
Concrete / Cemented floor class A 15 - C 250, in ramps
Pavement class D 400, Type I
Pavement class A 15 - C 250,
Asphalt class D 400,
Asphalt class D 400, in ramps
Asphalt class D 400, with curb
Concrete class D 400, with curb
Asphalt class D 400 - E 600,
Concrete class D 400 - E 600,
Pavement / large-size slab class D 400,
Asphalt class D 400, Type I
Concrete class D 400, Type I
Asphalt class D 400 - E 600,
Asphalt class D 400 - E 600, with ledge stone
Pavement class D 400 - E 600, in ramps
Concrete class D 400 - F 900, in ramps
Concrete class E 600,
Pavement / large-size slab class E 600 - F 900,
Pavement class E 600 - F 900, Channel height ≥ 235 mm
Asphalt class F 900,
Concrete class F 900,
Pavement class A 15 - C 250, as double strand
Concrete class D 400, as double strand
Pavement class D 400, as double strand
Asphalt class E 600, as double strand
Asphalt class F 900, as double strand
