Article No. 23483
FASERFIX SUPER 200, class D 400
Ductile iron grating, SW 170/18 mm, KTL-coated, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

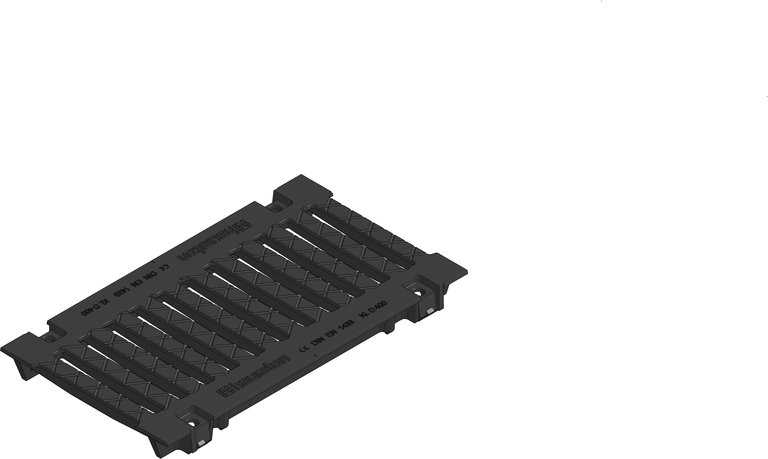

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
23483
Length
500 mm
Width
279 mm
Height
47 mm
Einlegetiefe
40 mm
Weight
9.20 kg
Material
Ductile iron GJS 500-7
Intake cross-section
732.0 cm²/m
Nominal size
200
Inlet opening
170 x 18 mm
Regulations
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Regulations
Ductile iron grating SW 170/18 mm, KTL-coated, cl. D 400, FASERFIX SUPER 200, 0.5 m
Regulations
FASERFIX SUPER 200 - Ductile iron grating made of spheroidal ductile iron GJS 500-7, slot width 170/18 mm, KTL-coated, load class A 15 to D 400 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 23483
Regulations
84
Declaration of Performance
