Article No. 4075
FASERFIX SUPER 300, class C 250
Mesh grating MW 30/15 mm, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

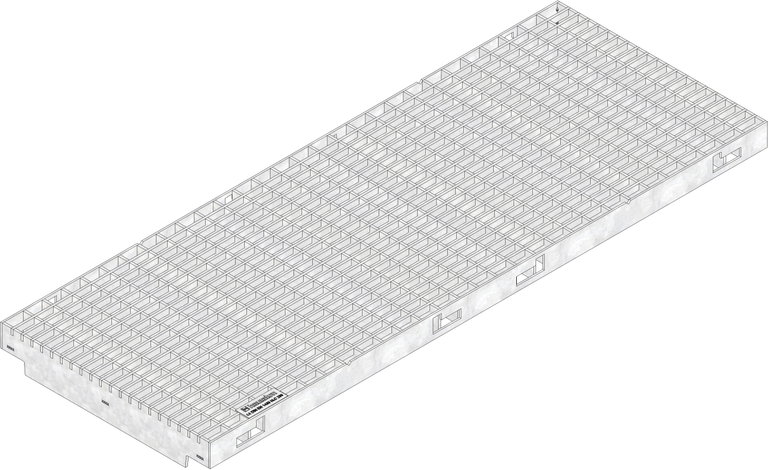

Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
4075
Length
1000 mm
Width
375 mm
Height
61 mm
Einlegetiefe
40 mm
Weight
26.08 kg
Material
hot-dip galvanised steel
Intake cross-section
2127.0 cm²/m
Nominal size
300
Inlet opening
30 x 15 mm
Fixing type
SIDE-LOCK, Bolting
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating 30/15, galvanised, cl. C 250, FASERFIX SUPER 300, L: 1 m
Product description
FASERFIX SUPER 300 - Mesh grating, galvanised, loading capacity from A 15 up to C 250, according to DIN 19580 / EN 1433, CE-conform, mesh width 30/15 mm, L: 1000 mm, Item No. 4075
Packaging unit
26
Declaration of Performance
