Article No. 24105
FASERFIX SUPER 300 with galvanised angle housings, up to load class F 900
Type 01 E, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

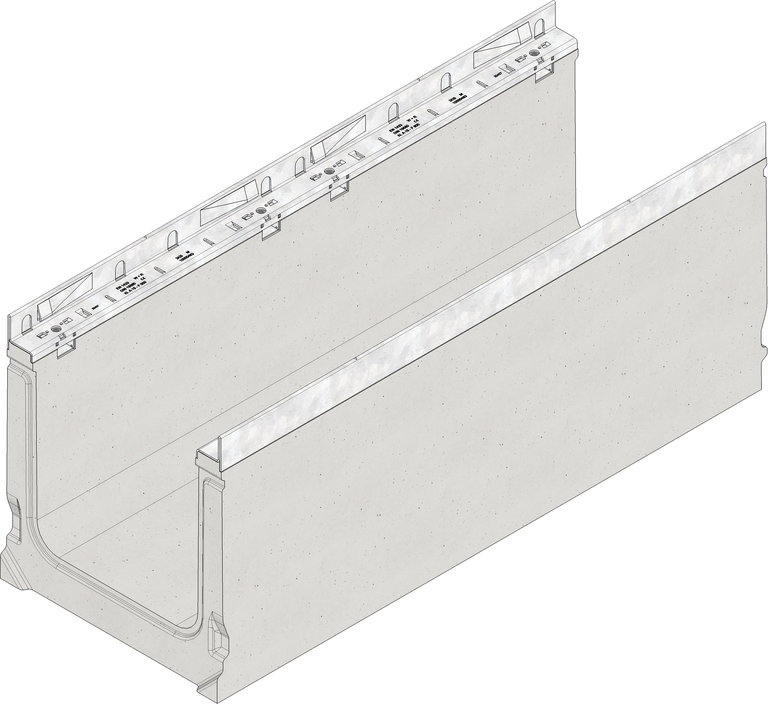

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
24105
Length
1000 mm
Width
390 mm
Height
415 mm
Weight
136.40 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating
Height of angle housing
40 mm
Nominal size
300
Internal channel cross-section
900 cm²
Fall
-
Regulations
SIDE-LOCK, Bolting
Regulations
M
Channel material
fibre-reinforced concrete
angle housing material
Steel with zinc-magnesium coating
Regulations
EN 1433, DIN 19580
Regulations
FASERFIX SUPER 300 Channel body type 01 angular with edge frames made of galvanised steel, 1 m
Regulations
FASERFIX SUPER 300 type 01 angular - channel body made of fibre reinforced concrete, loading capacity from A 15 up to E 600 according to EN 1433, CE compliant, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, eightfold locking, without crossing bars in the channel line, with sealing groove, grating insertion depth 40 mm, L/W/H 1000x390x415 mm, item no. 24105
Regulations
6
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - C 250
Asphalt class D 400
Asphalt class D 400
Asphalt class D 400
Concrete class D 400
Asphalt class D 400 - E 600
Concrete class D 400 - E 600
Pavement / large-size slab class D 400
Asphalt class D 400
Concrete class D 400
Asphalt class D 400 - E 600
Asphalt class D 400 - E 600
Pavement class D 400 - E 600
Concrete class D 400 - F 900
Concrete class E 600
Pavement / large-size slab class E 600 - F 900
Pavement class E 600 - F 900
Asphalt class F 900
Concrete class F 900
Pavement class A 15 - C 250
Concrete class D 400
Pavement class D 400
Asphalt class E 600
Asphalt class F 900
Installation instructions
