Article No. 24044

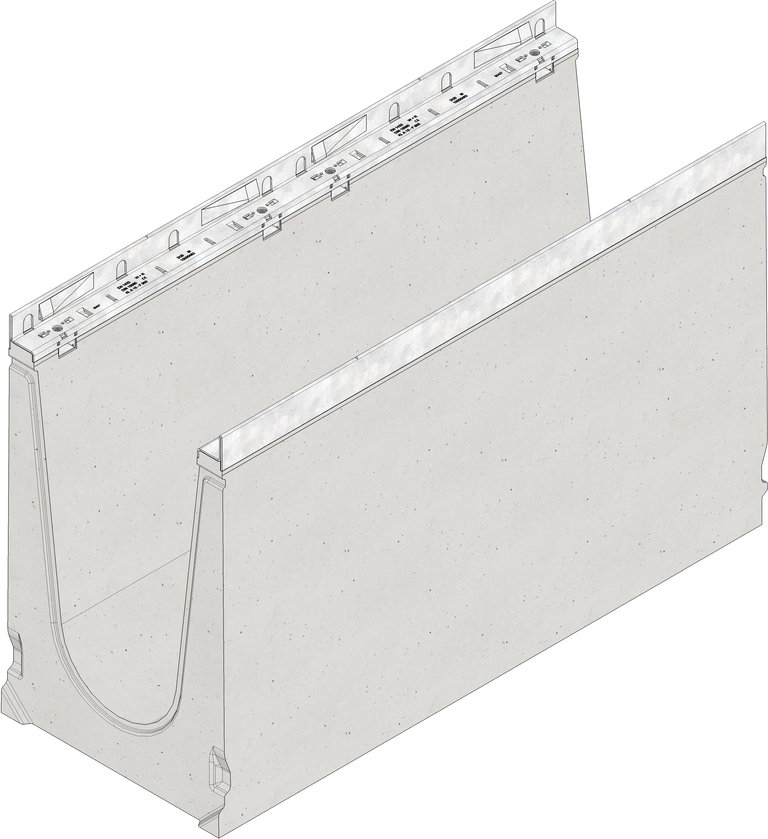

FASERFIX SUPER 300 with galvanised angle housings, up to load class F 900
Type 01 H, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
24044
Length
1000 mm
Width
390 mm
Height
630 mm
Weight
250.98 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating
Height of angle housing
40 mm
Nominal size
300
Internal channel cross-section
1202 cm²
Fall
-
Regulations
SIDE-LOCK, Bolting
Regulations
M
Channel material
fibre-reinforced concrete
angle housing material
Steel with zinc-magnesium coating
Regulations
EN 1433, DIN 19580
Regulations
FASERFIX SUPER 300 Channel body type 01H, height 630 mm, with edge frames made of galvanised steel, 1 m
Regulations
FASERFIX SUPER 300 type 01 H - channel body made of fibre reinforced concrete, loading capacity from A 15 up to F 900 according to EN 1433, CE compliant, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, fourfold locking, without crossing bars in the channel line, with sealing groove, grating insertion depth 40 mm, L/W/H 1000x390x630 mm, item no. 24044
Regulations
3
