Article No. 13840
RECYFIX HICAP F 10000 up to load class F 900
Type 10200, ductile iron slot 14 mm, KTL-coated, 1,14 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

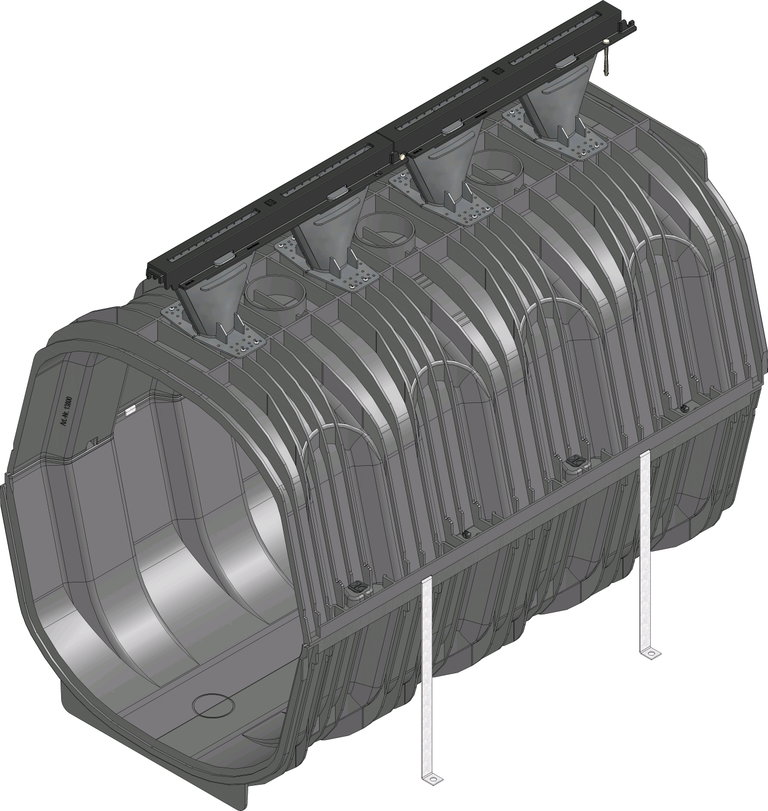

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
13840
Length
1145 mm
Width
760 mm
Height
1070 mm
Weight
31.57 kg
Material
ABS, Ductile iron GJS 500-7, Galvanised steel, Polyamide, recycled, modified Polypropylene, strip galvanized steel
Height of angle housing
244 mm
Intake cross-section
123.0 cm²/m
Nominal size
10000
Internal channel cross-section
4430 cm²
Fall
-
Height funnel
200 mm
Inlet opening
14 x 0 mm
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Regulations
RECYFIX HICAP F 10200 with ductile iron slotted grating SW 14 mm, KTL-coated, cl. F 900, 1.14 m
Regulations
RECYFIX HICAP F 10200 -consists of closed channel body with inlet adapter, with integrated ductile iron slot 14 mm, KTL coated, loading capacity from A 15 up to F 900, length 1140 mm, item no. 13840
Regulations
-
Declaration of Performance
Tender Texts
Installation example
Asphalt class E 600 - F 900
Concrete class E 600 - F 900
Pavement / large-size slab class E 600 - F 900
Concrete class D 400 - F 900
Concrete class D 400 - F 900
