Article No. 13870
RECYFIX HICAP F 10000 up to load class F 900
Type 10300, ductile iron mesh 13/28 mm, 1,14 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

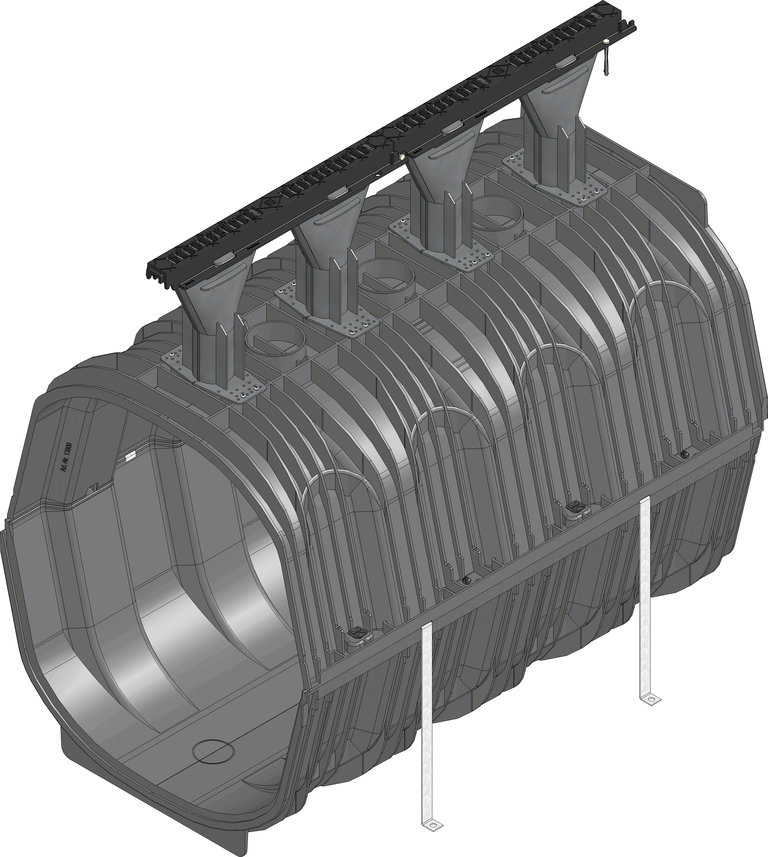

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
13870
Length
1145 mm
Width
760 mm
Height
1170 mm
Weight
31.20 kg
Material
ABS, Ductile iron GJS 500-7, Galvanised steel, Polyamide, recycled, modified Polypropylene, strip galvanized steel
Height of angle housing
344 mm
Intake cross-section
168.0 cm²/m
Nominal size
10000
Internal channel cross-section
4430 cm²
Fall
-
Height funnel
300 mm
Inlet opening
0 mm
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX HICAP F 10300 with ductile iron mesh 13/28 mm, KTL coated, cl. F 900, 1,14 m
Product description
RECYFIX HICAP F 10300 -consists of closed channel body with inlet adapter, with integrated ductile iron mesh 13/28 mm, KTL coated, loading capacity from A 15 up to F 900, length 1140 mm, item no. 13870
Packaging unit
-
Declaration of Performance
Tender Texts
Installation example
Concrete class D 400 - F 900
Asphalt class A 15 - D 400
Concrete class A 15 - D 400
Pavement / large-size slab class D 400
Asphalt class E 600 - F 900
Concrete class E 600 - F 900
Pavement / large-size slab class E 600 - F 900
Concrete class D 400 - F 900
Concrete class A 15 - F 900
Concrete class D 400
Pavement / large-size slab class D 400
Pavement class A 15 - C 250
Pavement class A 15 - C 250
Asphalt class A 15 - F 900
Concrete class A 15 - F 900
Pavement / large-size slab class D 400 - F 900
Pavement / large-size slab class D 400
Asphalt class D 400
Asphalt class D 400
Concrete class D 400
Pavement / large-size slab class D 400
Pavement class A 15 - C 250
Pavement class A 15 - C 250
Asphalt class A 15 - F 900
Concrete class A 15 - F 900
Pavement / large-size slab class D 400 - F 900
Pavement / large-size slab class D 400
Pavement class A 15 - C 250
Asphalt class A 15 - E 600
Concrete class A 15 - E 600
Pavement / large-size slab class D 400 - E 600
Asphalt class F 900
Concrete class F 900
Pavement / large-size slab class F 900
