Article No. 13230
RECYFIX HICAP F 3000 up to load class F 900
Type 3200, with ductile iron slot 28 mm, KTL-coated, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

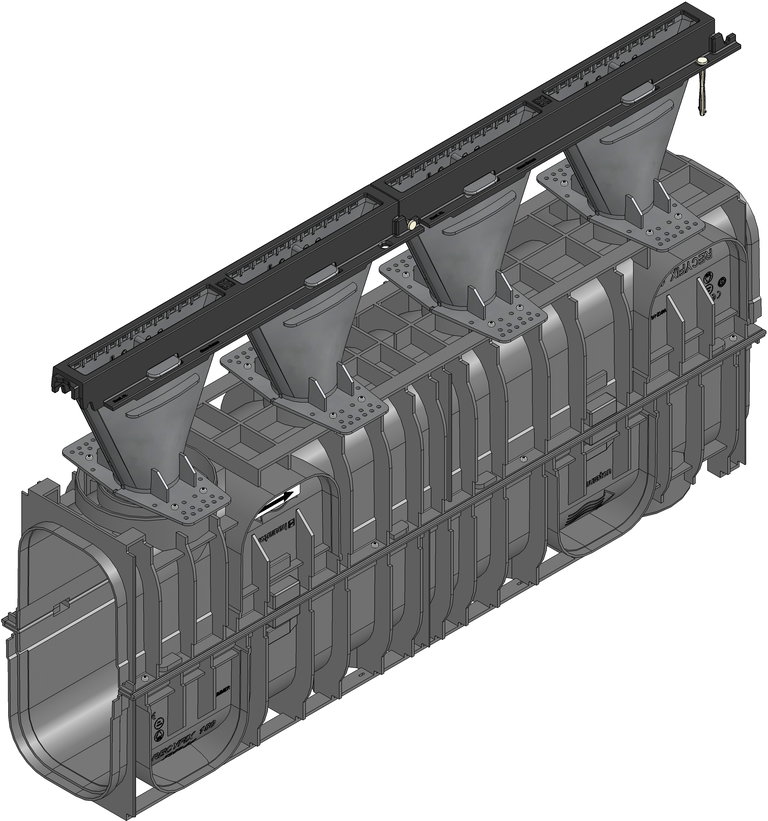

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
13230
Length
1000 mm
Width
210 mm
Height
580 mm
Weight
11.29 kg
Material
ABS, Ductile iron GJS 500-7 with KTL-coating, Galvanised steel, Polyamide, recycled, modified Polypropylene
Height of angle housing
228 mm
Intake cross-section
248.0 cm²/m
Nominal size
3000
Internal channel cross-section
460 cm²
Fall
-
Height funnel
200 mm
Inlet opening
28 x 220 mm
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Regulations
RECYFIX HICAP F 3200 with ductile iron slotted grating SW 28 mm, KTL-coated, cl. F 900, 1 m
Regulations
RECYFIX HICAP F 3200 -consists of closed channel body with inlet adapter, with integrated ductile iron slot 28 mm, KTL coated, loading capacity from A 15 up to F 900, length 1000 mm, item no. 13230
Regulations
15
Declaration of Performance
Tender Texts
Installation example
Asphalt class A 15 - F 900
Asphalt class A 15 - F 900
Concrete class A 15 - F 900
Concrete class A 15 - F 900
Pavement / large-size slab class D 400 - F 900
Pavement / large-size slab class D 400 - F 900
Concrete class A 15 - F 900
