Article No. 13425
RECYFIX HICAP F 5000 up to load class F 900
Type 5200, ductile iron slot 14 mm, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

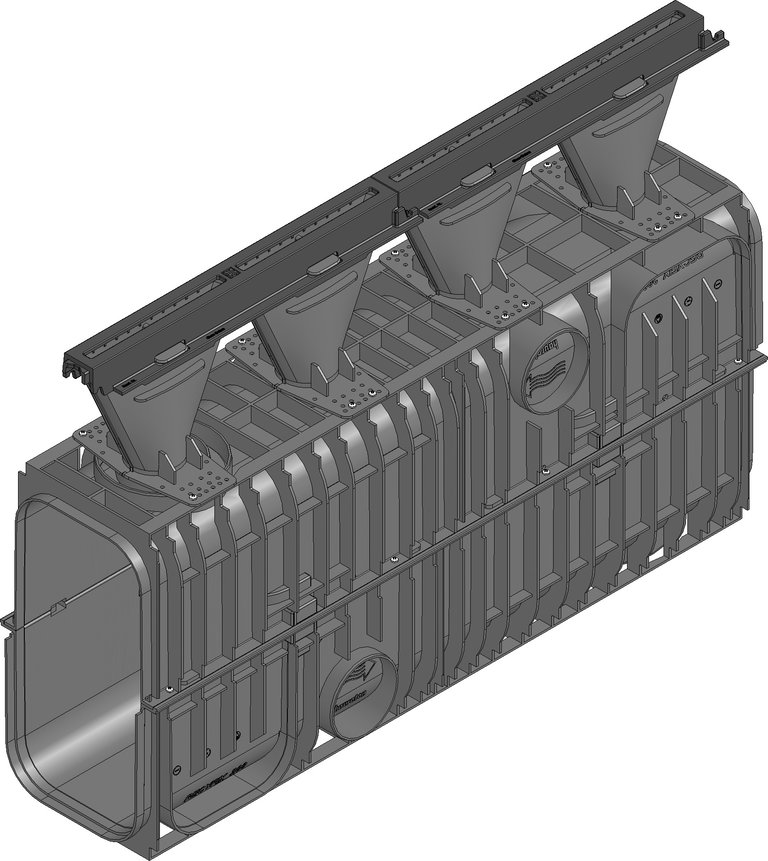

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
13425
Length
1000 mm
Width
256 mm
Height
665 mm
Weight
13.50 kg
Material
ABS, Ductile iron GJS 500-7 with KTL-coating, Galvanised steel, Polyamide, recycled, modified Polypropylene
Height of angle housing
228 mm
Intake cross-section
124.0 cm²/m
Nominal size
5000
Internal channel cross-section
790 cm²
Fall
-
Height funnel
200 mm
Inlet opening
14 x 220 mm
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX HICAP F 5200 with ductile iron slot 14 mm, KTL coated, cl. F 900, 1 m
Product description
RECYFIX HICAP F 5200 -consists of closed channel body with inlet adapter, with integrated ductile iron slot 14 mm, KTL coated, loading capacity from A 15 up to F 900, length 1000 mm, item no. 13425
Packaging unit
-
Declaration of Performance
Tender Texts
Installation example
Concrete class D 400 - F 900
Asphalt class A 15 - D 400
Concrete class A 15 - D 400
Pavement / large-size slab class D 400
Asphalt class E 600 - F 900
Concrete class E 600 - F 900
Pavement / large-size slab class E 600 - F 900
Concrete class D 400 - F 900
Concrete class A 15 - F 900
Concrete class D 400
Pavement / large-size slab class D 400
Pavement class A 15 - C 250
Pavement class A 15 - C 250
Asphalt class A 15 - F 900
Concrete class A 15 - F 900
Pavement / large-size slab class D 400 - F 900
Pavement / large-size slab class D 400
Asphalt class D 400
Asphalt class D 400
Concrete class D 400
Pavement / large-size slab class D 400
Pavement class A 15 - C 250
Pavement class A 15 - C 250
Asphalt class A 15 - F 900
Concrete class A 15 - F 900
Pavement / large-size slab class D 400 - F 900
Pavement / large-size slab class D 400
Pavement class A 15 - C 250
Asphalt class A 15 - E 600
Concrete class A 15 - E 600
Pavement / large-size slab class D 400 - E 600
Asphalt class F 900
Concrete class F 900
Pavement / large-size slab class F 900
