Article No. 13670
RECYFIX HICAP F 8000 up to load class F 900
Type 8300, ductile iron traverse bar grating SW 13/28 mm, KTL-coated, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

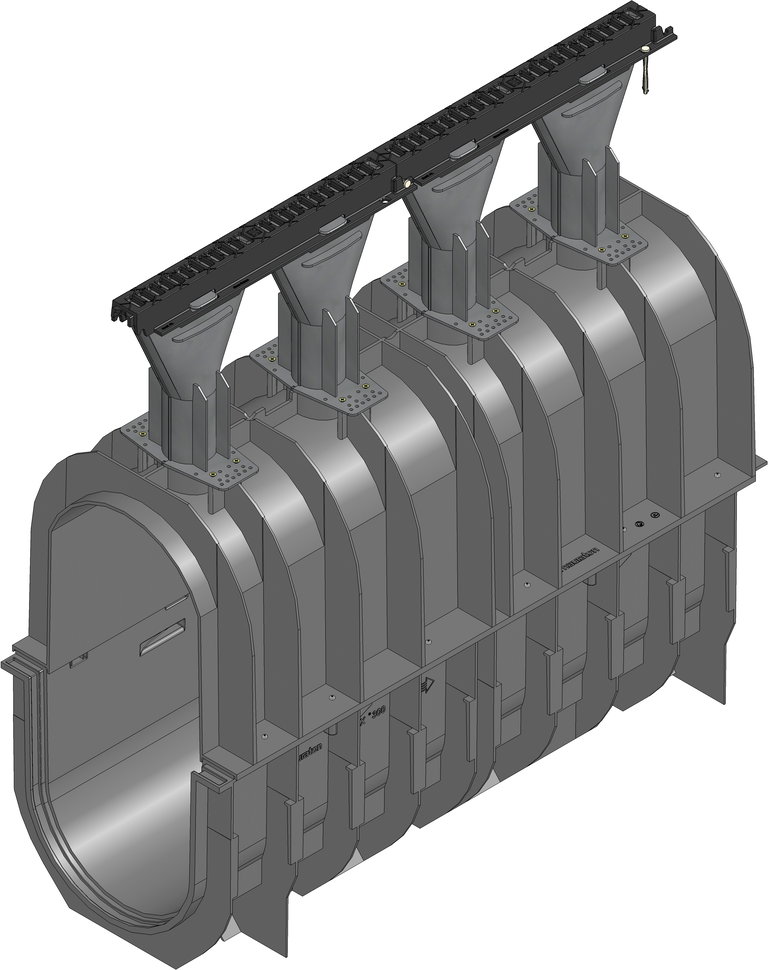

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
13670
Length
1000 mm
Width
432 mm
Height
1050 mm
Weight
24.10 kg
Material
ABS, Aluminium, Ductile iron GJS 500-7 with KTL-coating, Galvanised steel, Polyamide, recycled, modified Polypropylene
Height of angle housing
354 mm
Intake cross-section
172.0 cm²/m
Nominal size
8000
Internal channel cross-section
1714 cm²
Fall
-
Height funnel
300 mm
Inlet opening
13 x 28 mm
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Regulations
RECYFIX HICAP F 8300 with ductile iron traverse bar grating 13/28 mm, KTL-coated, cl. F 900, 1 m
Regulations
RECYFIX HICAP F 8300 -consists of closed channel body with inlet adapter, with integrated ductile iron mesh 13/28 mm, KTL coated, loading capacity from A 15 up to F 900, length 1000 mm, item no. 13670
Regulations
6
Declaration of Performance
Tender Texts
Installation example
Asphalt class F 900
Asphalt class F 900
Asphalt class F 900
Concrete class F 900
Pavement / large-size slab class F 900
Concrete class F 900
Concrete class F 900
