Article No. 13675
RECYFIX HICAP F 8000 up to load class F 900
Type 8300, ductile iron slot 14 mm, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

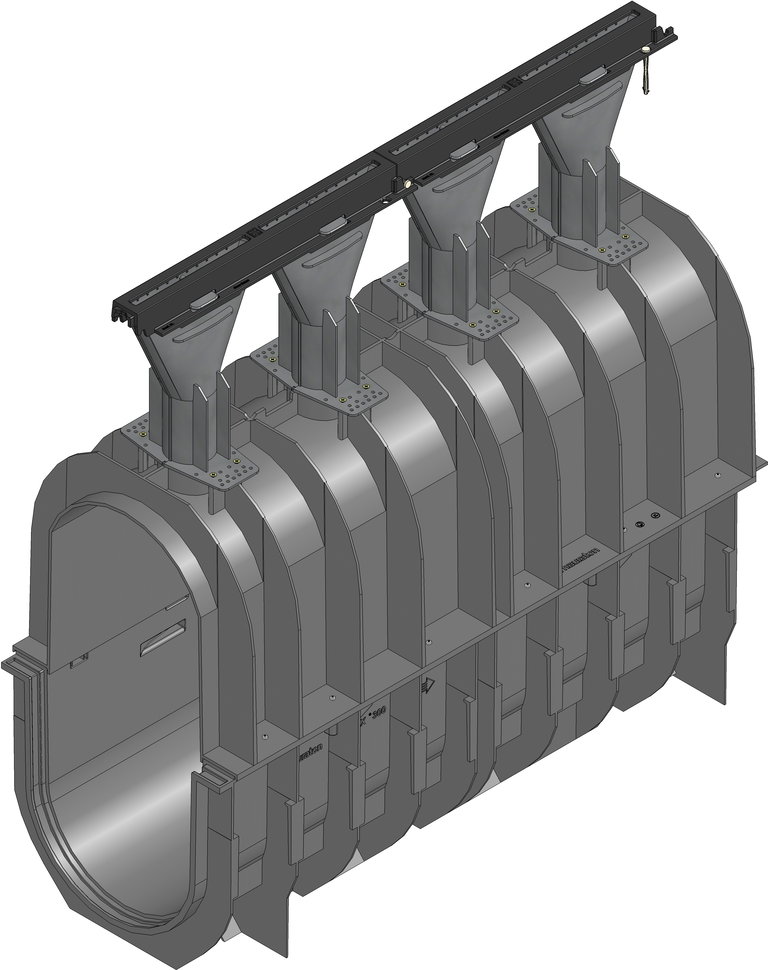

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
13675
Length
1000 mm
Width
432 mm
Height
1050 mm
Weight
23.77 kg
Material
ABS, Ductile iron GJS 500-7 with KTL-coating, Polyamide, recycled, modified Polypropylene
Height of angle housing
354 mm
Intake cross-section
124.0 cm²/m
Nominal size
8000
Internal channel cross-section
1714 cm²
Fall
-
Height funnel
300 mm
Inlet opening
14 x 220 mm
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX HICAP F 8300 with ductile iron slot 14 mm, KTL coated, cl. F 900, 1 m
Product description
RECYFIX HICAP F 8300 -consists of closed channel body with inlet adapter, with integrated ductile iron slot 14 mm, KTL coated, loading capacity from A 15 up to F 900, length 1000 mm, item no. 13675
Packaging unit
6
Declaration of Performance
Tender Texts
Installation example
Concrete class D 400 - F 900
Asphalt class A 15 - D 400
Concrete class A 15 - D 400
Pavement / large-size slab class D 400
Asphalt class E 600 - F 900
Concrete class E 600 - F 900
Pavement / large-size slab class E 600 - F 900
Concrete class D 400 - F 900
Concrete class A 15 - F 900
Concrete class D 400
Pavement / large-size slab class D 400
Pavement class A 15 - C 250
Pavement class A 15 - C 250
Asphalt class A 15 - F 900
Concrete class A 15 - F 900
Pavement / large-size slab class D 400 - F 900
Pavement / large-size slab class D 400
Asphalt class D 400
Asphalt class D 400
Concrete class D 400
Pavement / large-size slab class D 400
Pavement class A 15 - C 250
Pavement class A 15 - C 250
Asphalt class A 15 - F 900
Concrete class A 15 - F 900
Pavement / large-size slab class D 400 - F 900
Pavement / large-size slab class D 400
Pavement class A 15 - C 250
Asphalt class A 15 - E 600
Concrete class A 15 - E 600
Pavement / large-size slab class D 400 - E 600
Asphalt class F 900
Concrete class F 900
Pavement / large-size slab class F 900
