Article No. 36215
RECYFIX MONOTEC 200, up to class D 400
Type 450, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

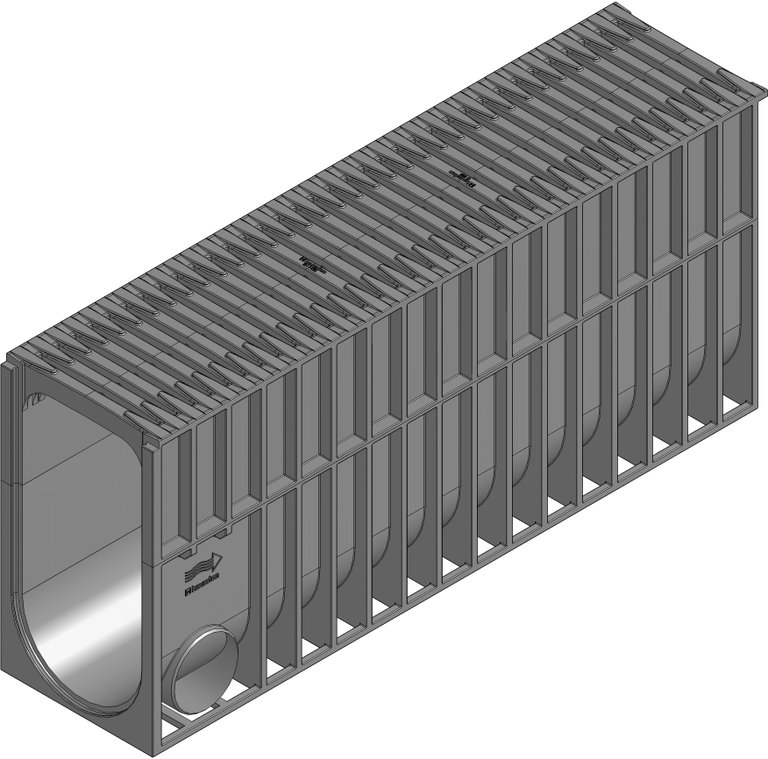

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
36215
Length
1000 mm
Width
250 mm
Height
450 mm
Weight
16.31 kg
Material
reinforced Polypropylene
Height of angle housing
34 mm
Intake cross-section
656.0 cm²/m
Nominal size
200
Internal channel cross-section
746 cm²
Fall
-
Type according to DIN EN 1433
M
Regulations
EN 1433
Sales text
RECYFIX MONOTEC 200 type 450 with permanently integrated grating in FIBRETEC design SW 200/10 mm
Product description
RECYFIX MONOTEC 200 type 450 – Monolithic channel consisting of channel body with permanently integrated grating in FIBRETEC design slot width 200/10 mm, made of fibre-reinforced recycled polypropylene (PP), black, with lateral connection possibility DN/OD 110, load class A 15 - D 400 according to EN 1433, L/B/H 1000x250x450 mm, item no. 36215
Packaging unit
20
Declaration of Performance
Tender Texts
Installation example
Concrete class A 15 - D 400
Concrete class D 400
Pavement class D 400
Asphalt class D 400
Installation instructions
