Article No. 48775
RECYFIX NC 100, class D 400
Type 75 with ductile iron grating, SW 104/10 mm, black, 8-fold bolted, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

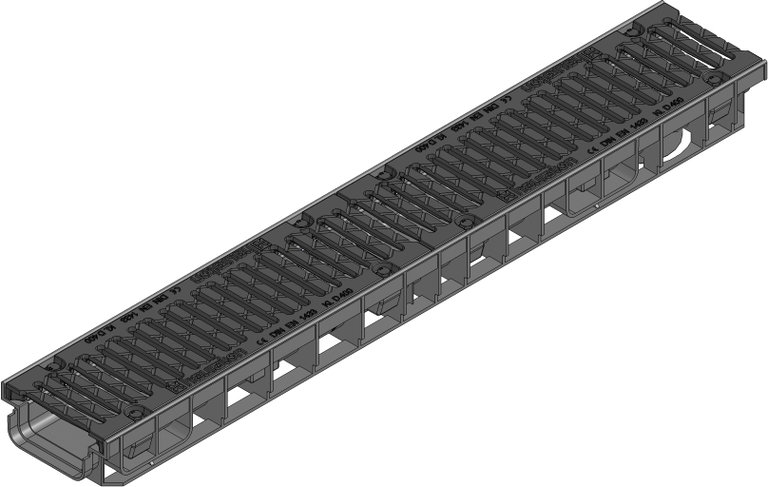

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
48775
Length
1000 mm
Width
160 mm
Height
75 mm
Einlegetiefe
20 mm
Weight
10.26 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
426.0 cm²/m
Nominal size
100
Internal channel cross-section
35 cm²
Regulations
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Regulations
RECYFIX NC 100 Channel type 75 with ductile iron grating SW 104/10 mm, black, cl. D 400, 1 m
Regulations
RECYFIX NC 100 type 75 - channel made of modified PP, with integrated angle housing, with vertical connection possibility DN/OD 110, ductile iron grating made of spheroidal ductile iron GJS 500-7, SW 104/10 mm, black, with horizontal thrust resistance, eightfold locking, loading capacity from A 15 - D 400 according to EN 1433, L/W/H 1000x160x75mm, item no. 48775
Regulations
84
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Asphalt class A 15 - B 125
Pavement class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Asphalt class D 400 - E 600
Concrete class D 400 - E 600
Pavement class D 400 - E 600
Asphalt class A 15 - B 125
Pavement class A 15 - C 250
Pavement class D 400
Asphalt class E 600
Concrete class C 250 - D 400
Asphalt class C 250 - D 400
Concrete class E 600
Installation instructions
