Article No. 48871
RECYFIX NC 150, class D 400
Type 01 with ductile iron grating, black, SW 154/18 mm, 8-fold bolted, 1,0 m
Questions?

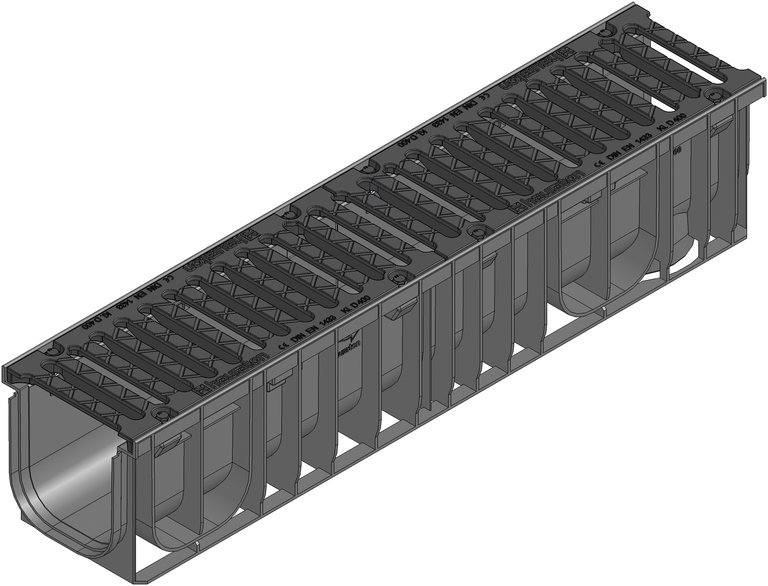

Product image

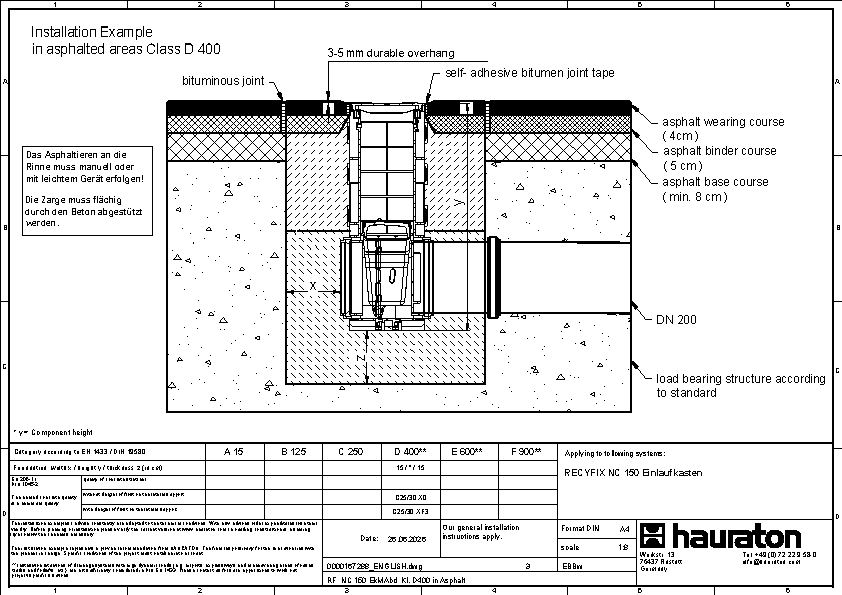

Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
48871
Length
1000 mm
Width
212 mm
Height
210 mm
Einlegetiefe
20 mm
Weight
15.73 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
702.0 cm²/m
Nominal size
150
Internal channel cross-section
230 cm²
Regulations
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Regulations
RECYFIX NC 150 Channel type 01 with ductile iron grating SW 154/18 mm, black, cl. D 400, 1 m
Regulations
RECYFIX NC 150 type 01 - channel made of modified PP with integrated angle housing, with vertical connection possibility DN/OD 110/160, with ductile iron grating made of spheroidal ductile iron GJS 500-7, SW 154/18 mm, black, with horizontal thrust resistance and eightfold locking, loading capacity from A 15 - D 400 according EN 1433, L/W/H 1000 x 212 x 210 mm, item no. 48871
Regulations
25
