Article No. 49572

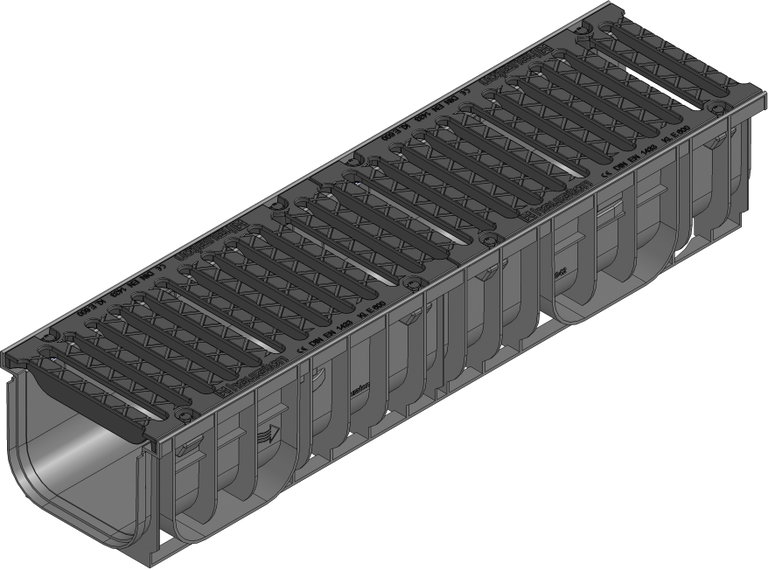

RECYFIX NC 200, class E 600
Type 010 with ductile iron grating SW 204/18 mm, black, 8-fold bolted, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
49572
Length
1000 mm
Width
262 mm
Height
200 mm
Einlegetiefe
20 mm
Weight
20.76 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
936.0 cm²/m
Nominal size
200
Internal channel cross-section
294 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, AS 4586, DIN 19580
Sales text
RECYFIX NC 200 type 010 with ductile iron grating, SW 204/18 mm, black, cl. E 600
Product description
RECYFIX NC 200 type 010 - channel made of modified PP with integrated angle housing, according EN 1433, with vertical connection possibility DN/OD 110/160, with ductile iron grating made of spheroidal ductile iron GJS 500-7, SW 204/18 mm, black, with horizontal thrust resistance, eightfold locking, loading capacity from A 15 - E 600, L/W/H 1000 x 262 x 200 mm item no. 49572
Packaging unit
20
