Article No. 49872
RECYFIX NC 300, class E 600
Type 010 with ductile iron grating SW 2 x 142/18 mm, black, 8-fold bolted, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

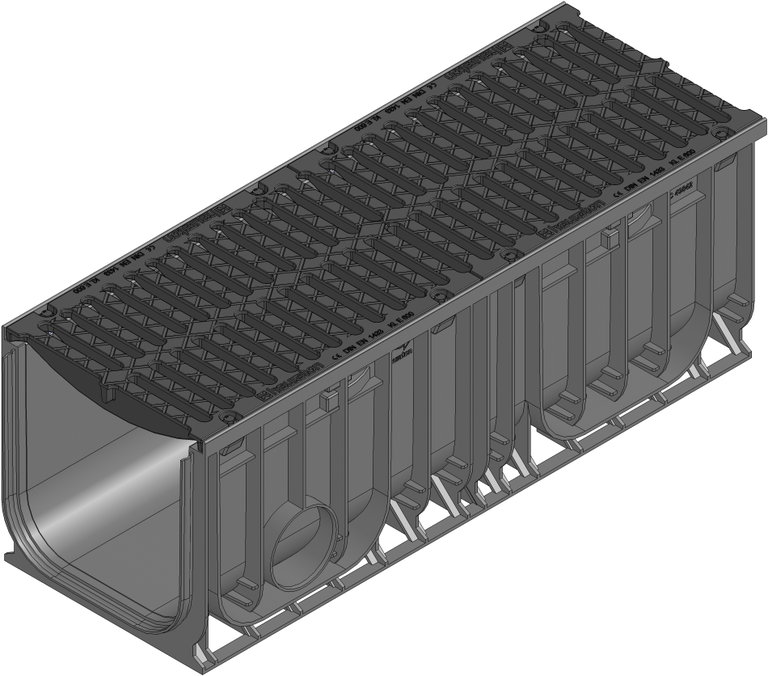

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
49872
Length
1000 mm
Width
362 mm
Height
360 mm
Einlegetiefe
20 mm
Weight
35.00 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
1293.0 cm²/m
Nominal size
300
Internal channel cross-section
873 cm²
Regulations
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Regulations
RECYFIX NC 300 type 010 with ductile iron grating, SW 2 x 142/18 mm, black, cl. E 600
Regulations
RECYFIX NC 300 type 010 - channel made of modified PP, with integrated angle housing, according to EN 1433, with lateral (DN/OD 125) and vertical (DN/OD 160/200) connection possibility, with ductile iron grating consists of ductile graphite iron EN-GJS, SW 2 x 142/18 mm, black, with horizontal thrust resistance, eightfold locking, loading class A 15 -E 600, L/W/H 100x362x360 mm, item no. 49872
Regulations
9
Declaration of Performance
Tender Texts
Installation instructions
Installation example
Asphalt class A 15 - B 125
Pavement class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Asphalt class D 400 - E 600
Concrete class D 400 - E 600
Pavement class D 400 - E 600
Asphalt class A 15 - B 125
Pavement class A 15 - C 250
Pavement class D 400
Asphalt class E 600
Concrete class C 250 - D 400
Asphalt class C 250 - D 400
Concrete class E 600
