Article No. 41444
RECYFIX PLUS 100, class A 15
Type 60 with perforated grating "Elegance", stainless steel, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

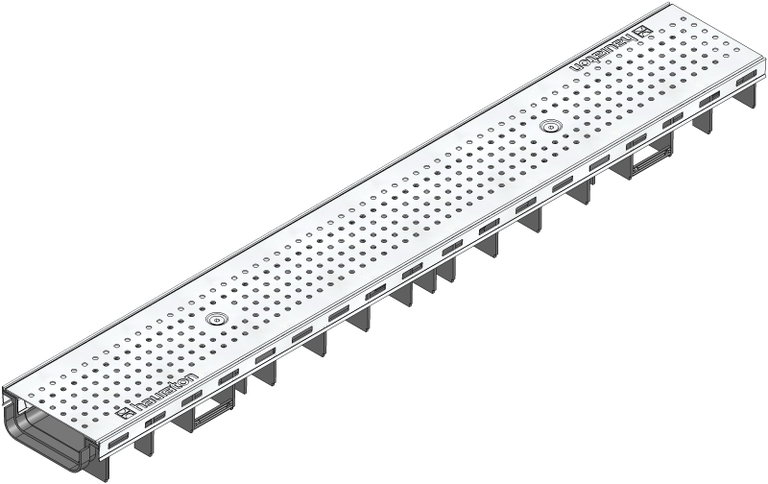

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
41444
Length
1000 mm
Width
147 mm
Height
60 mm
Einlegetiefe
3 mm
Weight
3.90 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), Stainless steel 1.4301
Intake cross-section
100.0 cm²/m
Nominal size
100
Internal channel cross-section
35 cm²
Regulations
M
Channel material
recycled, modified Polypropylene
angle housing material
Stainless steel 1.4301
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Regulations
RECYFIX PLUS 100 Channel type 60 with edge frames made of stainless steel and perforated grating Ø 6 mm, stainless steel, cl. A 15, locked, 1 m
Regulations
RECYFIX PLUS 100 type 60 - channel made of modified PP, with integrated metal profile made of stainless steel CNS 1.4301 (AISI 304) for the grating support, according to EN 1433, with vertical connection possibility DN/OD 75, with perforated grating, stainless steel CNS 1.4301 (AISI 304), Ø 6mm, locked, with locking device, loading capacity A 15, L/W/H 1000x147x60 mm, item no. 41444
Regulations
88
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Pavement class C 250
Cemented floor class A 15 - C 250
Asphalt class A 15 - B 125
Asphalt class C 250
Installation instructions
