Article No. 41446
RECYFIX PLUS 100, class A 15
Type 80 with perforated grating "Elegance", stainless steel, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

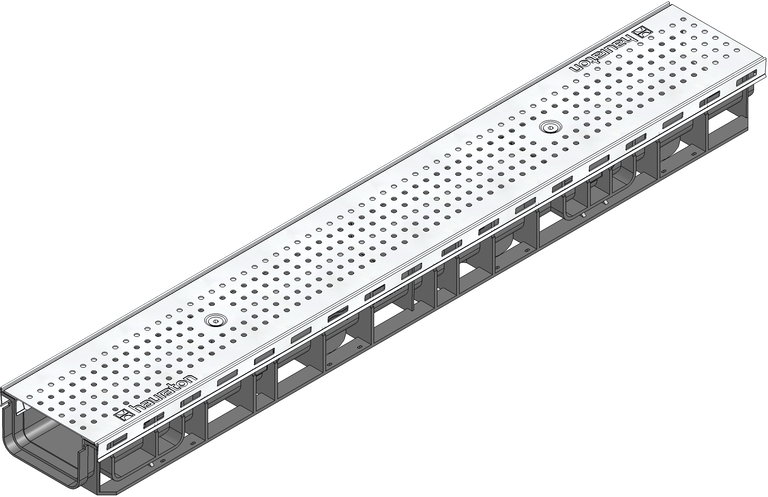

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
41446
Length
1000 mm
Width
147 mm
Height
80 mm
Einlegetiefe
3 mm
Weight
4.10 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), Stainless steel 1.4301
Intake cross-section
100.0 cm²/m
Nominal size
100
Internal channel cross-section
55 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material of angle housing
Stainless steel 1.4301
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PLUS 100 channel Type 80 with perforated grating ""Elegance"", stainless steel, cl. A 15, locked
Product description
RECYFIX PLUS 100 type 80 - channel made of modified PP, with integrated metal profile made of stainless steel CNS 1.4301 (AISI 304) for the grating support, according to EN 1433, with vertical connection possibility DN/OD 75, with perforated grating, stainless steel CNS 1.4301 (AISI 304), Ø 6mm, locked, with locking device, loading capacity A 15, L/W/H 1000x147x80 mm, item no. 41446
Packaging unit
88
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Pavement class C 250
Cemented floor class A 15 - C 250
Pavement class A 15 - B 125
Asphalt class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Installation instructions
