Article No. 41463
RECYFIX PLUS 100, class C 250
Type 01 with ductile iron grating SW 80/6 mm, black, stainless steel, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

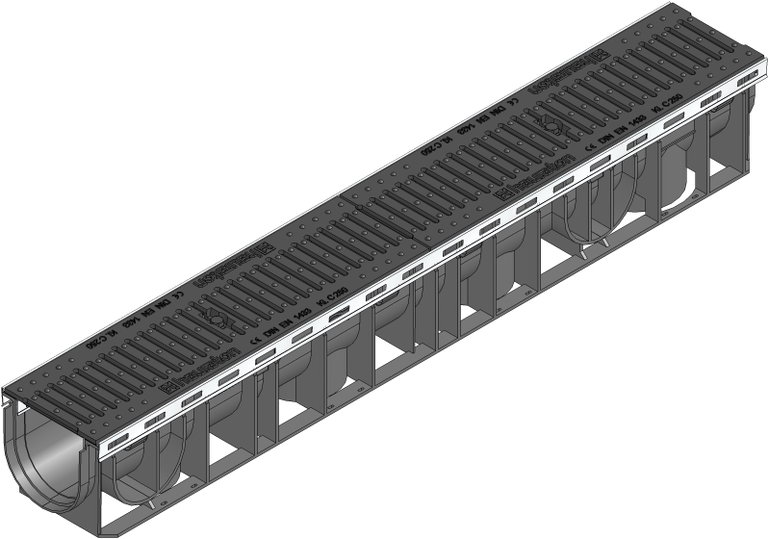

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
41463
Length
1000 mm
Width
147 mm
Height
135 mm
Einlegetiefe
6 mm
Weight
9.28 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, RECYFIX Material (recycled PA), Stainless steel 1.4301, Steel black galvanised
Intake cross-section
254.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
angle housing material
Stainless steel 1.4301
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 51130, AS 4586, DIN 19580, EN 16165
Sales text
RECYFIX PLUS 100 Channel type 01 with edge frames made of stainless steel and ductile iron grating SW 80/6 mm, black, cl. C 250, locked, 1 m
Product description
RECYFIX PLUS 100 type 01 - channel made of modified PP, with integrated metal profile made of stainless steel CNS 1.4301 (AISI 304) for the grating support, according to EN 1433, with vertical connection possibility DN/OD 110, with ductile iron grating made of spheroidal ductile iron GJS 500-7, slot width 6 mm, black, locked, with horizontal thrust resistance and locking device, loading capacity from A 15 - C 250, L/W/H 1000x147x135 mm, item no. 41463
Packaging unit
49
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125,
Pavement class A 15 - B 125,
Asphalt class A 15 - C 250,
Cemented floor class A 15 - C 250,
Concrete class C 250,
Pavement class C 250,
Pavement class C 250,
Asphalt class A 15 - B 125,
Asphalt class C 250,
Pavement class A 15 - B 125,
Pavement class C 250,
Installation instructions
