Article No. 40360
RECYFIX PLUS 100, class C 250
Type 01 with GUGI-Ductile iron mesh grating MW 15/25 mm, black, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

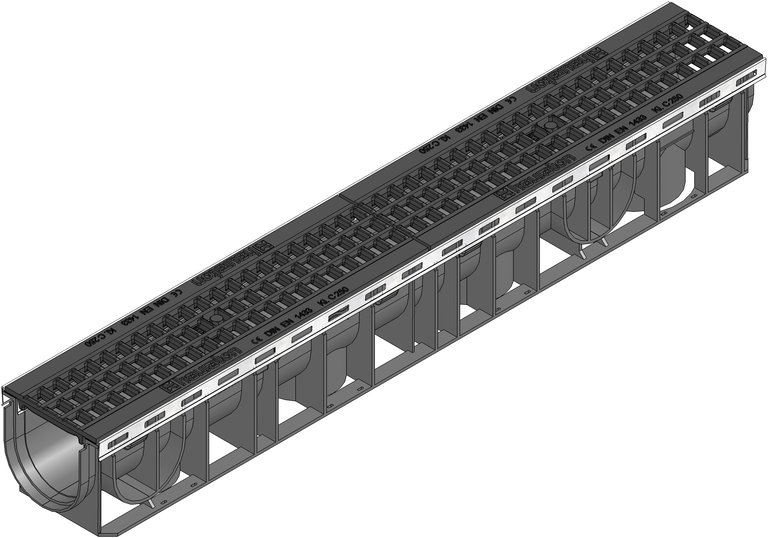

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
40360
Length
1000 mm
Width
147 mm
Height
135 mm
Einlegetiefe
6 mm
Weight
8.87 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, RECYFIX Material (recycled PA), Steel black galvanised, strip galvanized steel
Intake cross-section
453.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Regulations
M
Channel material
recycled, modified Polypropylene
angle housing material
strip galvanized steel
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Regulations
RECYFIX PLUS 100 Channel type 01 with edge frames made of galvanised steel and GUGI-ductile iron mesh grating MS 15/25 mm, black, cl. C 250, locked, 1 m
Regulations
RECYFIX PLUS 100 type 01 - channel made of modified PP, with integrated metal profile for the grating support, according to EN 1433, with vertical connection possibility DN/OD 110, with GUGI-ductile iron mesh grating made of spheroidal ductile iron GJS 500-7 , mesh width 15/25, with horizontal thrust resistance and locking device, black, locked, loading capacity from A 15 - C 250, L/W/H 1000x147x135 mm, item no. 40360
Regulations
49
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Pavement class C 250
Cemented floor class A 15 - C 250
Asphalt class A 15 - B 125
Asphalt class C 250
Installation instructions
