Article No. 40386
RECYFIX PLUS 100, class C 250
Type 01 with ductile iron grating SW 80/14 mm, black, locked, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

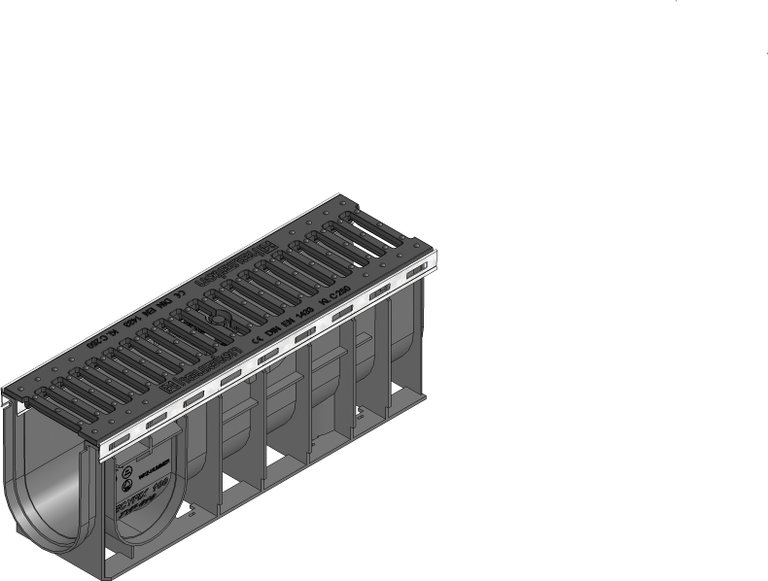

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
40386
Length
500 mm
Width
147 mm
Height
186 mm
Einlegetiefe
6 mm
Weight
4.56 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, RECYFIX Material (recycled PA), Steel black galvanised, strip galvanized steel
Intake cross-section
432.0 cm²/m
Nominal size
100
Internal channel cross-section
142 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material of angle housing
strip galvanized steel
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 51130, DIN 19580, EN 16165
Sales text
RECYFIX PLUS 100 Channel Type 010 with ductile iron grating SW 14 mm, cl. C 250, with locking handle adjustment
Product description
RECYFIX PLUS 100 type 010 - channel made of modified PP, with integrated metal profile for the grating support, according to EN 1433, with ductile iron grating made of spheroidal ductile iron GJS 500-7, slot width 80/14, with horizontal thrust resistance and locking device, black, locked, loading capacity from A 15 - C 250, L/W/H 500x147x186 mm, item no. 40386
Packaging unit
84
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Pavement class C 250
Cemented floor class A 15 - C 250
Pavement class A 15 - B 125
Asphalt class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Installation instructions
