Article No. 40344
RECYFIX PLUS 100, trafficable
Type 01 with slotted grating SW 9 mm, galvanised, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

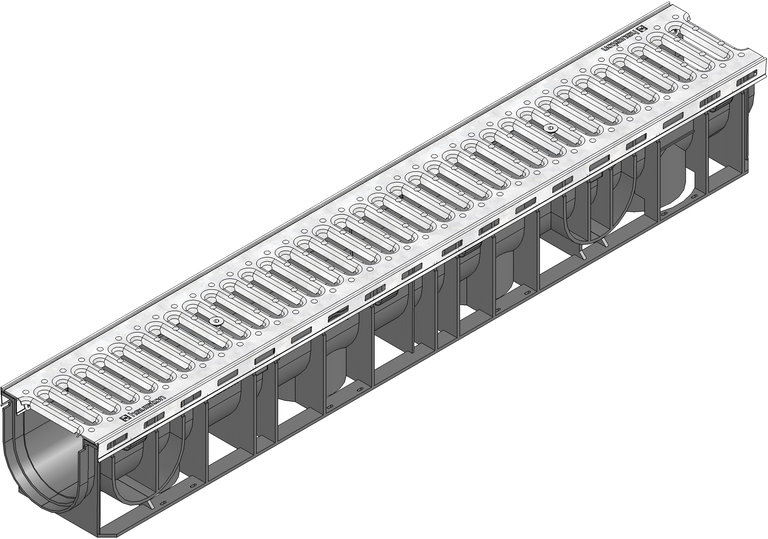

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
40344
Length
1000 mm
Width
147 mm
Height
135 mm
Einlegetiefe
3 mm
Weight
5.30 kg
Material
Galvanised steel, recycled, modified Polypropylene, RECYFIX Material (recycled PA), strip galvanized steel
Intake cross-section
242.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material of angle housing
strip galvanized steel
Material grating
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PLUS 100 Channel type 01 with slotted grating, galvanised, trafficable, with locking device
Product description
RECYFIX PLUS 100 type 01 - channel made of modified PP, with integrated metal profile for the grating support, according to EN 1433, with vertical connection possibility DN/OD 110, with slotted grating and locking device, trafficable, galvanised, locked, L/W/H 1000x147x135 mm, item no. 40344
Packaging unit
49
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Pavement class C 250
Cemented floor class A 15 - C 250
Pavement class A 15 - B 125
Asphalt class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Installation instructions
