Article No. 41077
RECYFIX PLUS 150, class B 125
Type 01 with mesh grating MW 30/10 mm, galvanised, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

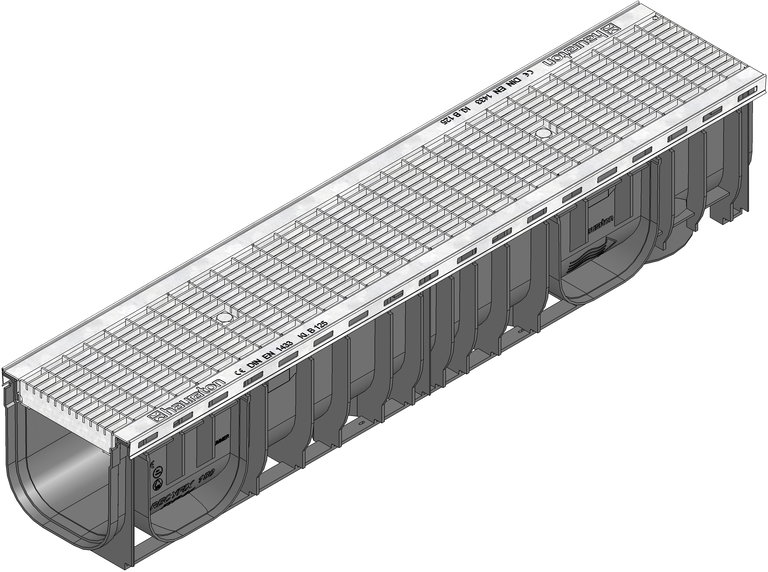

Product image
Top view
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
41077
Length
1000 mm
Width
202 mm
Height
193 mm
Einlegetiefe
2 mm
Weight
9.85 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled, modified Polypropylene, reinforced Polyamide, strip galvanized steel
Intake cross-section
1075.0 cm²/m
Nominal size
150
Internal channel cross-section
225 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material of angle housing
strip galvanized steel
Material grating
hot-dip galvanised steel
Regulations
EN 1433, AS 4586, DIN 19580
Sales text
RECYFIX PLUS 150 channel type 01 with mesh grating, MW 30/10, galvanised, cl. B 125, locked, 1 m
Product description
RECYFIX PLUS 150 type 01 - channel made of modified PP, with integrated metal profile for the grating support, galvanised, with vertical connection possibility DN/OD 110/160, with mesh grating, mesh width 30/10, galvanised, locked, with locking device, loading capacity from A 15 - B 125 according to EN 1433, L/W/H 1000x202x193 mm, item no. 41077
Packaging unit
25
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Pavement class C 250
Cemented floor class A 15 - C 250
Pavement class A 15 - B 125
Asphalt class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Installation instructions
