Article No. 41041

RECYFIX PLUS 150, class C 250

Type 100, with GUGI-Ductile iron mesh grating MW 15/25 mm, black, galvanised, locked, 1,0 m

Available from stock

Questions?

Our experienced planning team will be happy to help you.

Get in touch

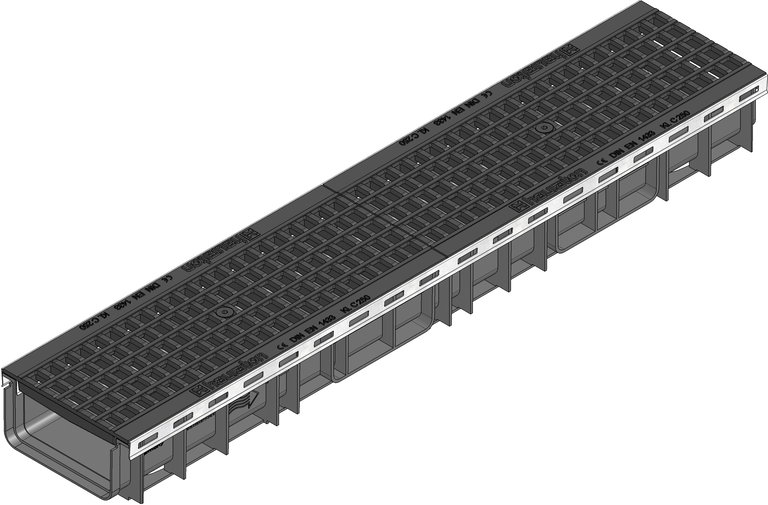

Product image

Top view

Technical drawing

Drawing (CAD)

Data Sheet

Technical information and metrics

Article No.
41041
Length
1000 mm
Width
202 mm
Height
100 mm
Einlegetiefe
23 mm
Weight
12.56 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, reinforced Polyamide, Steel black galvanised, strip galvanized steel
Intake cross-section
688.0 cm²/m
Nominal size
150
Internal channel cross-section
117 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
angle housing material
strip galvanized steel
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PLUS 150 Channel type 100 with edge frames made of galvanised steel and GUGI-ductile iron mesh grating MS 15/25 mm, black, cl. C 250, locked, 1 m
Product description
RECYFIX PLUS 150 type 100 - channel made of modified PP, with integrated metal profile for the grating support, galvanised, with vertical connection possibility DN/OD 110, with GUGI-ductile iron mesh grating spheroidal ductile iron GJS 500-7, mesh width 15/25, black, locked, with horizontal thrust resistance and locking device, loading capacity from A 15 - C 250 according to EN 1433, L/W/H 1000x202x100, item no. 41041
Packaging unit
50

Declaration of Performance

Tender Texts

Installation example

Pavement class A 15 - B 125,

Pavement class C 250,

Cemented floor class A 15 - C 250,

Asphalt class A 15 - B 125,

Asphalt class C 250,

Installation instructions
