Article No. 40771
RECYFIX PLUS 200, class B 125
Type 010 with mesh grating MW 30/30 mm, galvanised, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

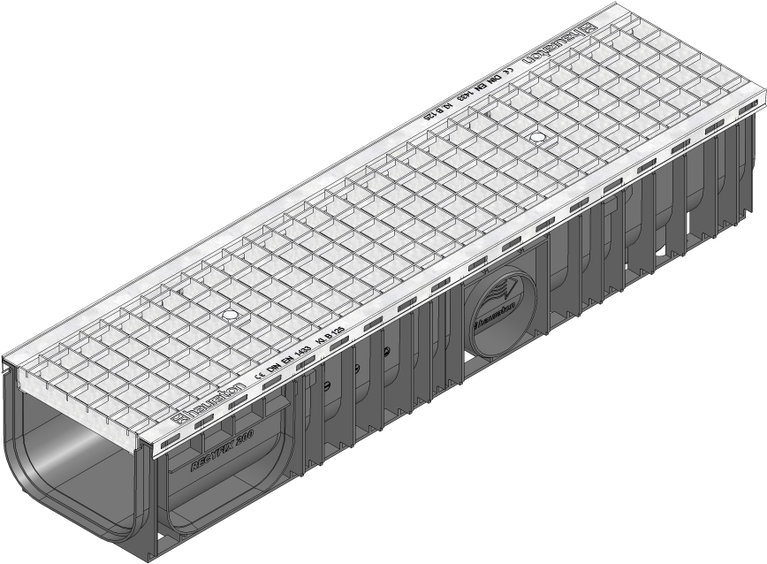

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
40771
Length
1000 mm
Width
247 mm
Height
186 mm
Einlegetiefe
2 mm
Weight
10.57 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled, modified Polypropylene, strip galvanized steel
Intake cross-section
1633.0 cm²/m
Nominal size
200
Internal channel cross-section
294 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material of angle housing
strip galvanized steel
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PLUS 200 Channel type 010 with edge frame made of galvanised steel and mesh grating MS 30x30 mm, galvanised, cl. B 125, locked, 1 m
Product description
RECYFIX PLUS 200 type 010 - channel made of modified PP, with integrated metal profile for the grating support, with lateral (DN/OD 110) and vertical (DN/OD 110/160) connection possibility, with mesh grating, mesh width 30/30, galvanised, locked, with locking device, loading capacity from A 15 - B 125 according to EN 1433, L/W/H 1000x247x186 mm, item no. 40771
Packaging unit
20
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Pavement class C 250
Cemented floor class A 15 - C 250
Pavement class A 15 - B 125
Asphalt class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Installation instructions
