Article No. 42788
RECYFIX PLUS 200, class C 250
Type 010 with ductile iron grating, SW 180/6 mm, black, stainless steel, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

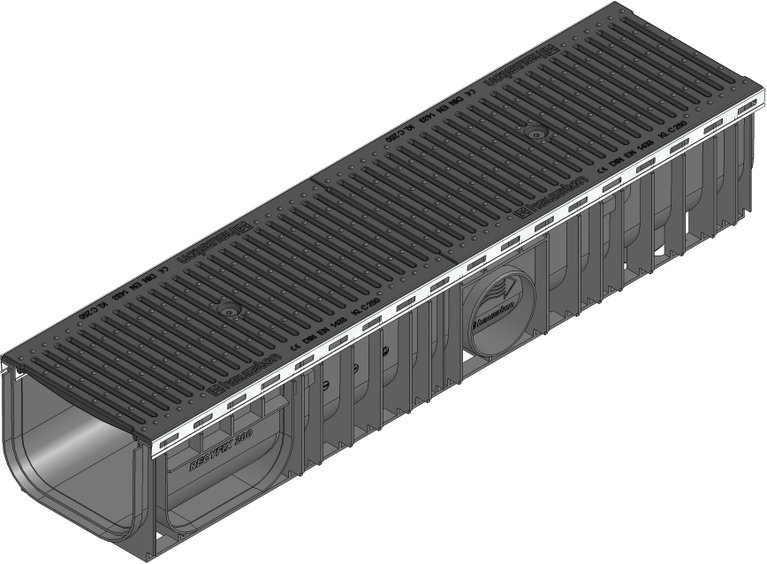

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
42788
Length
1000 mm
Width
247 mm
Height
186 mm
Einlegetiefe
6 mm
Weight
18.90 kg
Material
Ductile iron GJS 500-7, Galvanised steel, recycled, modified Polypropylene, Stainless steel 1.4301, Steel black galvanised
Intake cross-section
557.0 cm²/m
Nominal size
200
Internal channel cross-section
294 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
angle housing material
Stainless steel 1.4301
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PLUS 200 Channel type 010 with edge frames made of stainless steel and ductile iron grating SW 180/6 mm, black, cl. C 250, locked, 1 m
Product description
RECYFIX PLUS 200 type 010 - channel made of modified PP, with integrated metal profile made of stainless steel CNS 1.4301 (AISI 304) for the grating support, with lateral (DN/OD 110) and vertical (DN/OD 110/160) connection possibility, with ductile iron grating made of spheroidal ductile iron GJS 500-7, slot width 6 mm, black, locked, with horizontal thrust resistance and locking device, loading capacity from A 15 - C 250 according to EN 1433, L/W/H 1000x247x186 mm, item no. 42788
Packaging unit
20
Declaration of Performance
Tender Texts
Installation example
Pavement class B 125,
Cemented floor class B 125 - C 250,
Concrete class C 250,
Pavement class C 250,
Asphalt class A 15 - B 125,
Asphalt class C 250,
Pavement class A 15 - B 125,
Pavement class C 250,
Installation instructions
