Article No. 40772
RECYFIX PLUS 200, class C 250
Type 020 with GUGI-Ductile iron mesh grating MW 15/25 mm, black, galvanised, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

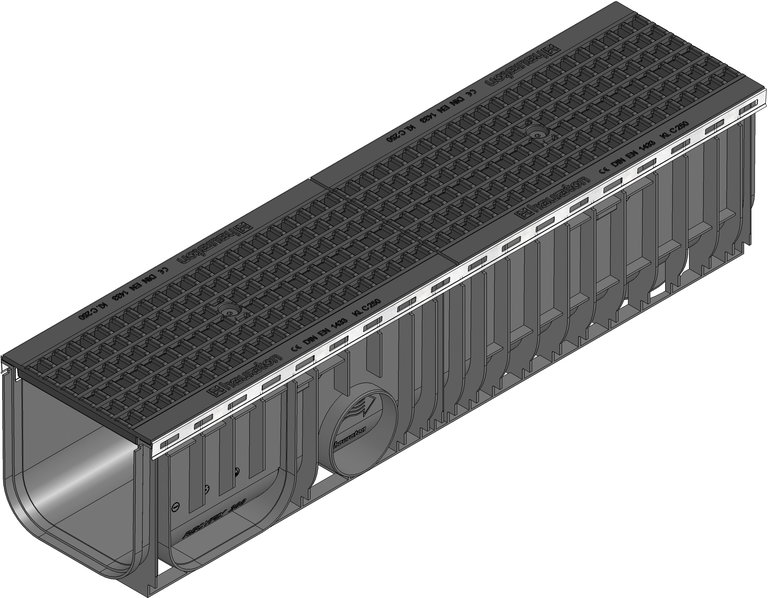

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
40772
Length
1000 mm
Width
247 mm
Height
236 mm
Einlegetiefe
6 mm
Weight
17.10 kg
Material
Ductile iron GJS 500-7, Galvanised steel, recycled, modified Polypropylene, Steel black galvanised, strip galvanized steel
Intake cross-section
836.0 cm²/m
Nominal size
200
Internal channel cross-section
394 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material of angle housing
strip galvanized steel
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PLUS 200 Channel type 020 with edge frame made of galvanised steel and GUGI ductile iron mesh grating MS 15x25 mm, black, cl. C 250, locked, 1 m
Product description
RECYFIX PLUS 200 type 020 - channel made of modified PP, with integrated metal profile for the grating support, with lateral (DN/OD 110) and vertical (DN/OD 110/160) connection possibility, with GUGI-ductile iron mesh grating made of spheroidal ductile iron GJS 500-7, mesh width 15/25, black, locked, with horizontal thrust resistance and locking device, loading capacity from A 15 up to C 250 according to EN 1433, L/W/H 1000x247x236 mm, item no. 40772
Packaging unit
16
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Pavement class C 250
Cemented floor class A 15 - C 250
Pavement class A 15 - B 125
Asphalt class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Installation instructions
