Article No. 42070
RECYFIX PLUS X 100, class D 400
Type 01 with GUGI-ductile iron mesh grating, MW 15/25 mm, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

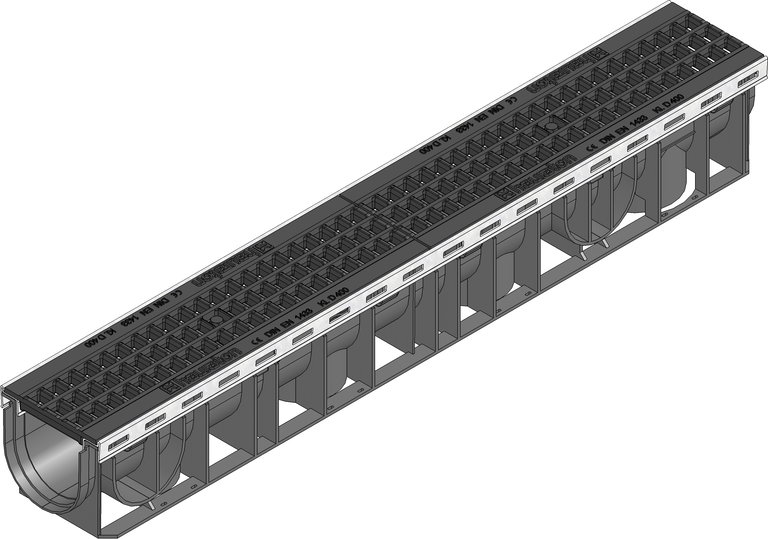

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
42070
Length
1000 mm
Width
149 mm
Height
138 mm
Einlegetiefe
6 mm
Weight
11.50 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, RECYFIX Material (recycled PA), Steel black galvanised, strip galvanized steel
Intake cross-section
440.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material of angle housing
strip galvanized steel
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PLUS X 100 channel type 01 with GUGI-ductile iron mesh grating, cl. D 400, locked, 1 m
Product description
RECYFIX PLUS X 100 type 01 - channel made of modified PP, with integrated metal profile for the grating support, galvanised, with vertical connection possibility DN/OD 110, with GUGI-ductile iron mesh grating, MW 15/25 mm, black, with horizontal thrust resistance and locking, loading capacity from A 15 up to D 400 according to EN 1433, L/W/H 1000x149x138 mm, item no. 42070
Packaging unit
49
Declaration of Performance
Tender Texts
Installation guide
Installation guide
Installation example
Asphalt class D 400
Concrete class D 400
Pavement class D 400
Installation instructions
