Article No. 42377
RECYFIX PLUS X 300, class D 400
Type 01 with ductile iron grating, SW 18 mm, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

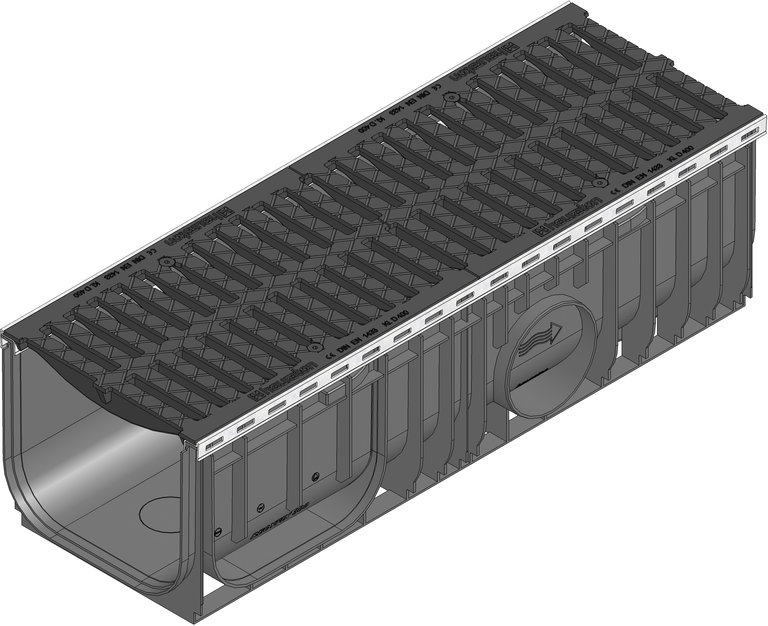

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
42377
Length
1000 mm
Width
349 mm
Height
294 mm
Einlegetiefe
6 mm
Weight
33.64 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, Steel black galvanised, strip galvanized steel
Intake cross-section
1102.0 cm²/m
Nominal size
300
Internal channel cross-section
730 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
angle housing material
strip galvanized steel
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PLUS X 300 Channel type 01 with edge frames made of galvanised steel and ductile iron grating 2x SW 128/18 mm, PMR, black, cl. D 400, locked, 1 m
Product description
RECYFIX PLUS X 300 type 01 - channel made of modified PP, with integrated metal profile for the grating support, with lateral (DN/OD 160) and vertical (DN/OD 160/200) connection possibility, with ductile iron grating made of spheroidal ductile iron GJS 500-7, slot width 2x 128/18 mm, black, with horizontal thrust resistance, loading capacity from A 15 - D 400 according to EN 1433, L/W/H 1000x349x294 mm, item no. 42377
Packaging unit
9
Declaration of Performance
Tender Texts
Installation example
Asphalt class D 400,
Concrete class D 400,
Pavement class D 400,
Installation instructions
